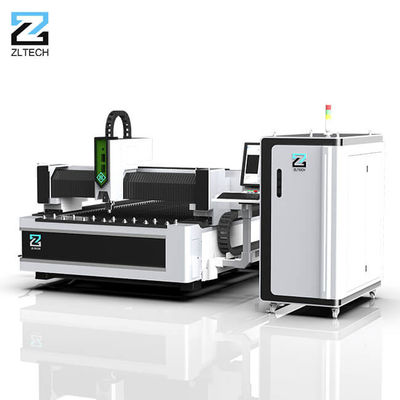

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

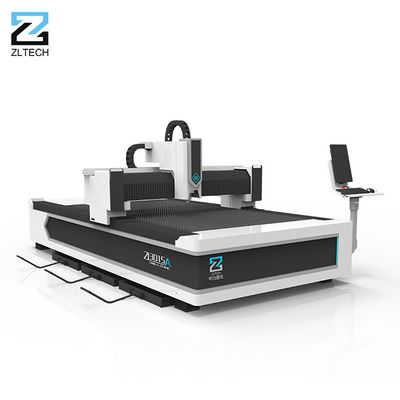

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

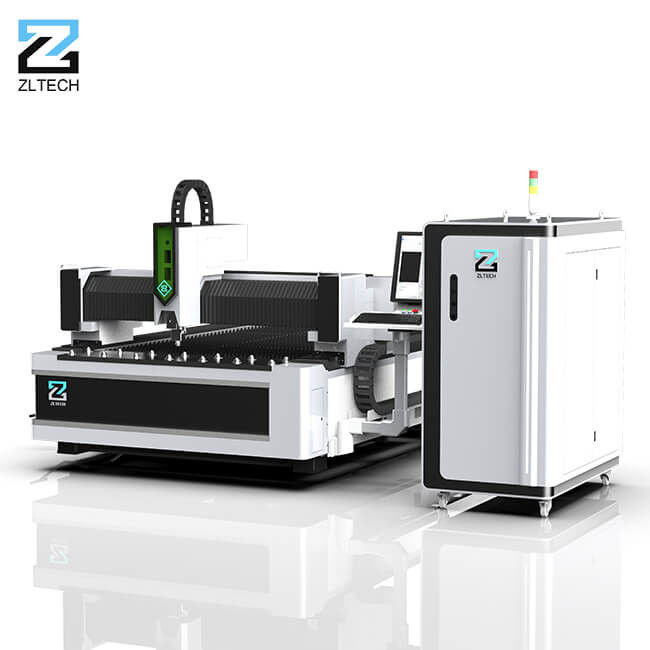

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

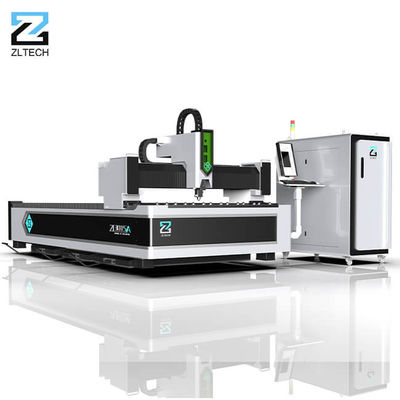

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

Large Image :  Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

Product Details:
Place of Origin: China
Brand Name: ZLTECH
Certification: CE
Model Number: 3015A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD5000-50000/PCS
Delivery Time: 25-30 word days
Supply Ability: 10000pcs/year
Contact Now

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w

Description
Applicable Materials: Stainless Steel Laser Type: Fiber Laser
Cutting Area: 1500*3000mm Cooling Mod: Hanli/S&A/DVT Water Cooling
Laser Source: MAX; IPG ;Raycus;RECI Servo Motor: Japan Fuji
Laser Power: 1kw/1.5kw/2kw/3kw/4kw/6kw/12kw Laser Head: Raytools;Au3tech;Precitec;Worthing;Empower
Control System: FSCUT;Au3tech
Highlight:

2kw 1530 fiber laser cutting machine

,

3kw 1530 fiber laser cutting machine

,

CE 1kw fiber laser cutting machine

1000w 1500w 2000w 3000w 6000w 12000w 1530 fiber laser cutting machine metal sheet cutting machine



Fiber laser cutter is a new type of metal laser cutting machine. The laser beam with high energy will focus on surface of workpiece, and the irradiated area will be melted and vaporized instantly. The slag will be blowed away by the assist gas. Compared with ordinary Co2 laser cutting machines, fiber laser cutting machine saves space and gas consumption, and its photoelectric conversion rate is higher.



Fiber laser cutter can help us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc.



Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 0

Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 1

Parameter
Brand
ZLTECH (ZHONGLI LASER)
Model
ZL3015A
Cutting area
3000×1500mm (size can bed customized)
Fiber laser power
1000w/1500w/2000w/3000w/4000w/6000w/
8000w/12000w/20000w
Fiber laser generator brand
Raycus / Max / IPG / DK
Laser wavelength
1,070-1,080mm
Interface
USB,RJ45
Moving speed
50m/min
Max Cutting speed
120m/min
Position accuracy
±0.03mm
Repeatability accuracy
±0.01mm
Power supply requirement
3 phase 380v 50HZ / 60HZ (customized)
Max acceleration
1.0G
Table load bearing
1500KG
Compatible software
CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers
Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format
LXD / DXF / PLT / AI / Gerber / DWG
Transmit system
Dual Rack & Pinion type
Control system and software
CypCut FSCUT
Cutting head
Raytools / Au3tech / Ospri / Precitec
Reducer
Japan Shimpo / France Motovario
Liner guider system
Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack
Taiwan YYC / Germany HERION
Electrical components
France Schneider
Water chiller
S&A / Hanli brand
Optional
Rotary; Exchanging Table ; Protective Cover
Processing material
Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc
Gross weight
3500KG
Packing size
4550*2250*1550mm
Packing method
20GP



Product Quality
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 2


Strong & Stable Welded Bed
The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile
strength, the working performance is stable.With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Stretched Aluminum Gantry
Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with
4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 3
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 4
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.



Laser Source
100,000 hours life span;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 5
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 6


Dust-proof Electrical Cabinet
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 7
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 8




Servo Motor And Drivers
High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.



YYC Rack Gear
High transmission efficiency;
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 9
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 10



Water Chiller
1. With environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

Sample Display
Materials:
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 11
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 12
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 13
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 14
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 15
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 16
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 17
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 18
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 19
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 20
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 21
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 22
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 23
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 24
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 25
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 26
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 27
Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power
Company Profile
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 28
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 29
Service
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 30
High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 31
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 32
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 33
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 34
Strict Quality Control:
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 35
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 36
Metal Sheet 1530 Fiber Laser Cutting Machine 1000w 1500w 2000w 3000w 6000w 12000w 37

Please feel free to contact me if you have any questions of our fiber laser machine.

Looking firward your reply.

Thanks & Best Regards
