CNC Sheet And Tube Laser Cutting Machine For Steel Aluminum 1kw 2kw 3kw 4kw

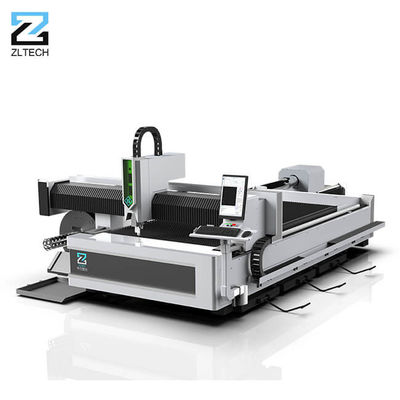

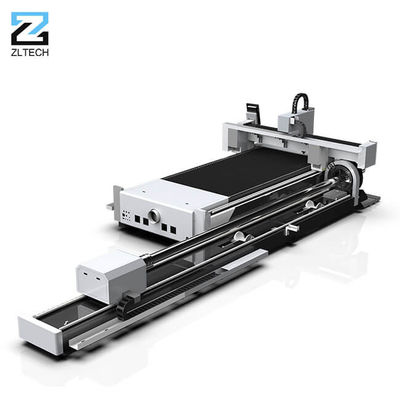

Large Image : CNC Sheet And Tube Laser Cutting Machine For Steel Aluminum 1kw 2kw 3kw 4kw

Product Details:

Place of Origin:	China
Brand Name:	ZLTECH
Certification:	CE，FDA
Model Number:	3015AC

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD10000-50000/PCS
Packaging Details:	Plywood box
Delivery Time:	20-25 word days
Payment Terms:	T/T, L/C
Supply Ability:	10000pcs/year

Contact Now

CNC Sheet And Tube Laser Cutting Machine For Steel Aluminum 1kw 2kw 3kw 4kw

Description

Applicable Materials:	Carbon /Aluminum/brass/stainless Steel	Cutting Area:	3000*1500mm
Laser Source:	MAX; IPG ;Raycus	Servo Motor:	Japan Fuji;Japan Yaskawa;Panasomic;Delta
Laser Power:	1000w/1500w/2000w/3000w/4000w/6000w	Laser Head:	Raytools;Au3tech;Precitec;Worthing;Empower
Warranty:	3 Years	Water Chiller:	DVT,Hanli,S&A
TUBE:	6m Rectangular	Reducer:	Japan Shimpo
High Light:	CNC Sheet And Tube Laser Cutting Machine , Sheet And Tube Laser Cutting Machine 1kw , 4kw tube laser cutting system

Fiber Laser Cutting Machine 1000w 2000w 3000w for Sheet Metal Tube Carbon Aluminum Brass

Product Description

Specification

1	Product Name	CNC Fiber Laser Cutting Machine
2	Product Model	ZL-3015AC
3	Cutting Size	3000mm×1500mm 4000×2000mm, 6000×2000mm Other size can be customized
4	Power	1000W 2000W 3000W 4000W 6000W 8000W 10000W 12000W 20000W
5	Laser Wavelength	1,070-1,080nm
6	Max Moving Speed	120m/min
7	Position Accuracy	0.01mm/m
8	Repeatability Accuracy	0.01mm
9	Fiber Laser Source	MAX / RAYCUS / IPG / DK
10	Motor&Drivers Brand	Japan Fuji; Japan Yaskawa ; Taiwan Delta
11	Cutting Head	Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12	Control System	FSCUT / Au3Tech / Raytools / Weihong
13	Ruducer	Japan Shimpo / France MOTOVARIO / Germany Lead-motion
14	Compatible Software	CorelDraw/AutoCAD/Photoshop/AI
15	Support Graphic Format	LXD/.DXF/.PLT/.AI/.Gerber/.DWG
16	Interface	USB,RJ45
17	Gear Rack	Taiwan YYC / Germany HERION
18	Electrical components	Schneider made in France
19	Water Chiller	Guangzhou TEYU / Wuhan Hanli /
20	Optional	Rotary; Exchanging Table ; Protective Cover
21	Processing Material	Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc

Application

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

Cutting Thickness

Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)

Product Quality

Stable & Strong Welded Steel Bed

The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing
and natural aging, the welding stress is eliminated, which
can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

Controller

We use FSCUT1000, FSCUT2000,etc. and CypCut or Cypone software.

If you want to use another controller you needs, we support adjust configurations.

Laser source

We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.

Auto Focus Laser Cutting Head

BM110 and BM111 Raytools Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Water chiller

Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.

Dust-proof Electrical Cabinet With Air Conditioner

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life
span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

Good Quality Gears

Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm

Reducer

Japan Shimpo / France MOTOVARIO reducers

Recommended by seller

Packing & Delivery

Company Profile

ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.

Why Choose Us

High Quality Requirement from ourself

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control

ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.

Professional After-Sale Service

ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.

1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.
