Enclosed Fibre 3000w 6000w Mini Laser Cutter 3mm Stainless Steel Gold Silver

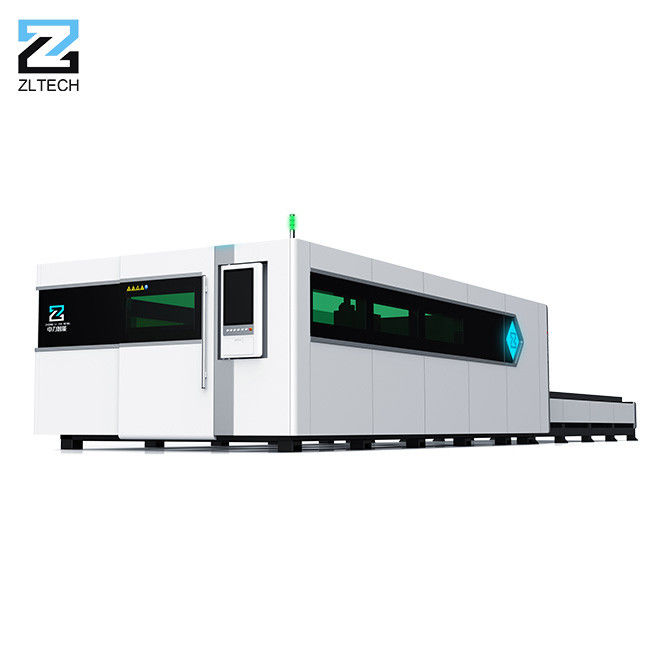

Large Image : Enclosed Fibre 3000w 6000w Mini Laser Cutter 3mm Stainless Steel Gold Silver

Product Details:

Place of Origin:	Jinan city, China
Brand Name:	ZLTECH
Certification:	CE, FDA
Model Number:	ZL-3015BD

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	USD15000-USD25,000 per set
Packaging Details:	Strong water-proof wood case
Delivery Time:	10-20 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200 Sets / month

Contact Now

Enclosed Fibre 3000w 6000w Mini Laser Cutter 3mm Stainless Steel Gold Silver

Description

Laser Power:	1000w/1500w/2000w/3000w/4000w	Material:	Metal (cs, Ss)
Cutting Size:	30001500mm/1300900mm	Warranty:	3 Years
System:	Au3tech	Servo Motor:	Yaskawa/Fuji Motor
Laser Source:	Max/Raycus	Max Cutting Speed:	120m/min
Guide Rails:	Taiwan Hiwin	Transmission:	Taiwan YYC
Cutting Thickness:	1-80mm
Highlight:	3000w Mini Laser Cutter , 6000w Mini Laser Cutter , Enclosed Fibre 3000w Laser Cutter

Enclosed Fibre 3000w 6000w Mini Laser Cutter 3mm Stainless Steel Gold Silver 1313 Aluminum Laser Cutting Machine For Met

Product Introduction

This model is a fully enclosed laser protective glass design to prevent laser damage to personnel.
The design of the automatic dust collection system, the internal filtration of the cutting dust, and the discharge meet the standards, making the process environmentally friendly.
There are built-in cameras on the front and back of the protective cover, and the intelligent central control system is used to monitor the operation and operation. The intelligent monitoring system design and real-time intelligent monitoring reduce the incidence of accidents.
High-speed parallel exchange table design, dual worktables exchange at the same time, stable, reliable and efficient transmission mode, shortened exchange time, saving auxiliary time for loading and unloading. The inverter controls the exchange motor, and the machine tool can complete the exchange in 15 seconds.
The intelligent operation software adopts high-definition tempered glass, intelligent touch, fast response and smoother operation. Ultra-low power consumption, high resolution.
The new intelligent alarm system can detect abnormalities in advance through the push of the control center to the interface, quickly eliminate and feedback, reduce hidden dangers, and the remote alarm operation is safe.

Parameters

Brand	ZLTECH
Model	ZL3015A
Cutting area	3000×1500mm (customized)
Fiber laser power	1000w/1500w/2000w/3000w/4000w/6000w/ 8000w/12000w/20000w
Fiber laser generator brand	Raycus / Max / IPG / DK
Laser wavelength	1,070-1,080mm
Interface	USB,RJ45
Moving speed	50m/min
Max Cutting speed	120m/min
Position accuracy	±0.03mm
Repeatability accuracy	±0.02mm
Power supply requirement	3 phase 380v 50HZ / 60HZ (customized)
Max acceleration	1.0G
Table load bearing	1500KG
Compatible software	CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers	Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format	LXD / DXF / PLT / AI / Gerber / DWG
Transmit system	Dual Rack & Pinion type
Control system and software	CypCut FSCUT
Cutting head	Raytools / Au3tech / Ospri / Precitec
Reducer	Japan Shimpo / France Motovario
Liner guider system	Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack	Taiwan YYC / Germany HERION
Electrical components	France Schneider
Water chiller	S&A / Hanli brand
Optional	Rotary; Exchanging Table ; Protective Cover
Processing material	Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc
Gross weight	3500KG
Packing size	455022501550mm
Packing method	20GP

Products Overview

Product Quality

Strong & Stable Welded Bed

The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile

strength, the working performance is stable. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Grade Tensile Cast Aluminum Beam

Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with

4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong

deformation resistance.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Laser Source

100,000 hours life span;

Stable and cost-efficient;

Remote networking diagnosis system;

Free maintenance;

Dust-proof Electrical Cabinet

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.

Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the

high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra-low power consumption and

high resolution.

The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly

eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation

Servo Motor And Drivers

High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.

YYC Rack Gear

High transmission efficiency;

The transmission is sensitive and stable;High positioning accuracy;

Good accuracy retention;

High transmission rigidity;

Good synchronization performance

Water Chiller

With environmental refrigerant;

±1℃ precise temperature control;

The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

Sample Display

Materials:

Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.

Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power

Company Profile

Service

High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control:ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
