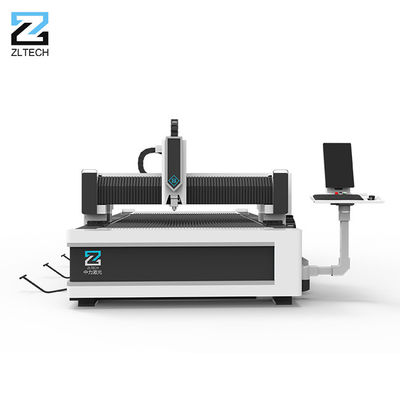

1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine

1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine

Large Image :  1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine

Product Details:
Place of Origin: Jinan city, China
Brand Name: ZLTECH
Certification: CE, FDA
Model Number: ZL-3015A
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD12000-USD22,000 per set
Packaging Details: Strong water-proof wood case
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets / month
Contact Now

1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine

Description
Laser Power: 1kw-20kw Material: Metal (cs, Ss, Aluminum, Brass, Copper)
Cutting Size: 3000*1500mm Warranty: 3 Years
System: CypCut / Au3tech (customized) Servo Motor: Japan Fuji / Yaskawa
Laser Source: Raycus / Max / IPG Max Cutting Speed: 120m/min
Guide Rails: Taiwan Hiwin Transmission: Taiwan YYC
Cutting Thickness: 1-80mm
Highlight:

1500W Metal Laser Cutter

,

1000W Metal Laser Cutter

,

2000W metal plate cutting machine

3015 working size RAYCUS MAX IPG 1000W 1500W 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine

Products Overview
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 0
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 1
Product Quality
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 2


Strong & Stable Welded Bed
The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile
strength, the working performance is stable. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Grade Tensile Cast Aluminum Beam
Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with
4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 3
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 4
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.



Laser Source
100,000 hours life span;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 5
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 6


Dust-proof Electrical Cabinet
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra-low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 7
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 8




Servo Motor And Drivers
High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.



YYC Rack Gear
High transmission efficiency;
The transmission is sensitive and stable;
High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 9
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 10



Water Chiller
1. With environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
Parameter
Brand
ZLTECH
Model
ZL3015A
Cutting area
3000×1500mm (customized)
Fiber laser power
1000w/1500w/2000w/3000w/4000w/6000w/
8000w/12000w/20000w
Fiber laser generator brand
Raycus / Max / IPG / DK
Laser wavelength
1,070-1,080mm
Interface
USB,RJ45
Moving speed
50m/min
Max Cutting speed
120m/min
Position accuracy
±0.03mm
Repeatability accuracy
±0.02mm
Power supply requirement
3 phase 380v 50HZ / 60HZ (customized)
Max acceleration
1.0G
Table load bearing
1500KG
Compatible software
CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers
Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format
LXD / DXF / PLT / AI / Gerber / DWG
Transmit system
Dual Rack & Pinion type
Control system and software
CypCut FSCUT
Cutting head
Raytools / Au3tech / Ospri / Precitec
Reducer
Japan Shimpo / France Motovario
Liner guider system
Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack
Taiwan YYC / Germany HERION
Electrical components
France Schneider
Water chiller
S&A / Hanli brand
Optional
Rotary; Exchanging Table ; Protective Cover
Processing material
Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc
Gross weight
3500KG
Packing size
4550*2250*1550mm
Packing method
20GP
Sample Display
Materials:
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 11
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 12
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 13
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 14
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 15
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 16
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 17
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 18
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 19
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 20
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 21
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 22
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 23
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 24
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 25
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 26
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 27
Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power
Company Profile
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 28
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 29
Service
High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
Strict Quality Control:
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
1000W 1500W Metal Laser Cutter 2000W 3000W 4000W CNC Fiber Laser Metal Plate Cutting Machine 30
