Product Details:
|
| Model: | ZL-3015AC | Laser Type: | Fiber Laser Cutting Machine |
|---|---|---|---|
| Applicable Materials: | Aluminum,Brass | Sheet Cutting Area: | 3000*1500mm |
| Tube Cutting Length: | 6000mm | Cutting Diameter: | 160mm/220mm/350mm |
| Laser Source: | Raycus | Laser Power: | 1000w/1500w/2000w/3000w/4000w/6000w |
| Cooling Mod: | Water Chiller Cooling | Servo Motor: | Japan Yaskawa |
| Laser Head: | Raytools;Au3tech;Precitec;Worthing;Empower | Warranty: | 3 Years |
| Highlight: | 6000w Fiber Laser Cutting Machine,Raycus 6000 watt laser cutting machine,Raycus 6000w laser cutter |
||

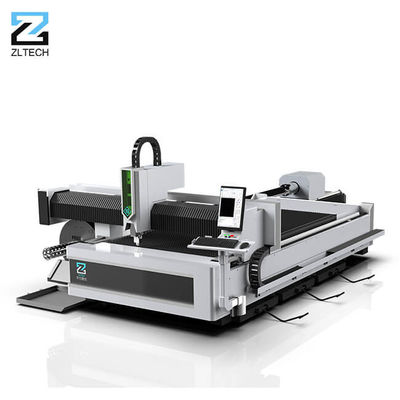

1000w 2000w 3000w 4000w 6000w Fiber Laser Cutting Machine Metal Cutter For Metal Sheet And Tube Cutting
A fiber laser cutting machine is a laser cutting machine that uses a fiber laser generator as a light source. Fiber laser is a new type of fiber laser developed in the world. It outputs high-energy-density laser beams, gathers on the surface of the workpiece, melts and evaporates the ultra-fine focus irradiation area on the workpiece, and moves the irradiation position of the spot through the numerical control mechanical system. Realize automatic cutting. Compared with bulky gas lasers and solid-state lasers, it has obvious advantages, and has gradually developed into an important candidate in the fields of high-precision laser processing, lidar systems, space technology, and laser medicine.
|
Strong and Stable Structure - The bed is welded with big thickness square tubes, which can guarantee a good stability and ensure good accuracy. - With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy. |
|
Structure with Aging Treatment In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use. |
|
|
FUSCUT Controller FSCUT system is designed for tube cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) , free form , and steel channels (T/U/H/L shape) production of high precision and efficiency. |
|
Raytools Automatic Focus Cutting Head - Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast. - Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly. |
|
|
Aviation Cast Aluminum Beam - Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance. - Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%. It’s more convenient for high speed movement and it can greatly increase the processing speed. |
|
Max Laser Source - Long life and maintenance-free operation - High electro-optical conversion efficiency - Good beam quality, high energy density - Remote networking diagnosis system - Wide modulation frequency - Strong reliability |
|
|
Japan Fuji Servo motor and drivers - Closed-loop control, no lost steps, high precision. - Good high-speed performance, rated speed can reach 3000 rpm generally. - Running smoothly even at low speed. - Fast response time, high reliability. |
|
Taiwan YYC rack gear -High transmission efficiency -The transmission is sensitive and stable -High positioning accuracy -Good accuracy retention -High transmission rigidity |
|
|
Japan Shimpo reducer -High output torque with small rotation clearance -PCS-2 standard configuration, efficiency up to 98% -High gear meshing accuracy |
|
Dual-temperature cooling system - Real time display current water temperature - Dual temperature dual control mode - Energy saving, electricity saving and environmental protection - Stable and reliable performance |
|
|
Full Automatic Double Pneumatic Chuck - The pneumatic chucks are 3 times faster than electric chucks due to one-key clamping and auto centering. - With large and constant clamping force, heavy tubes will be clamped stably. - Two rows of rollers are adopted for a wide range of clamping and high cutting precision. |
