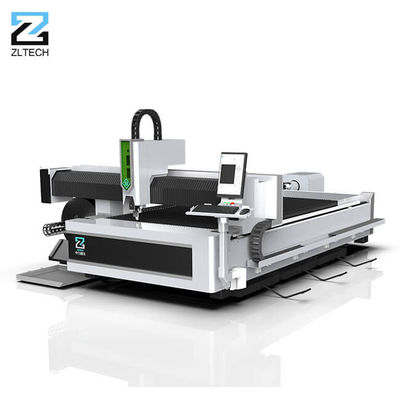

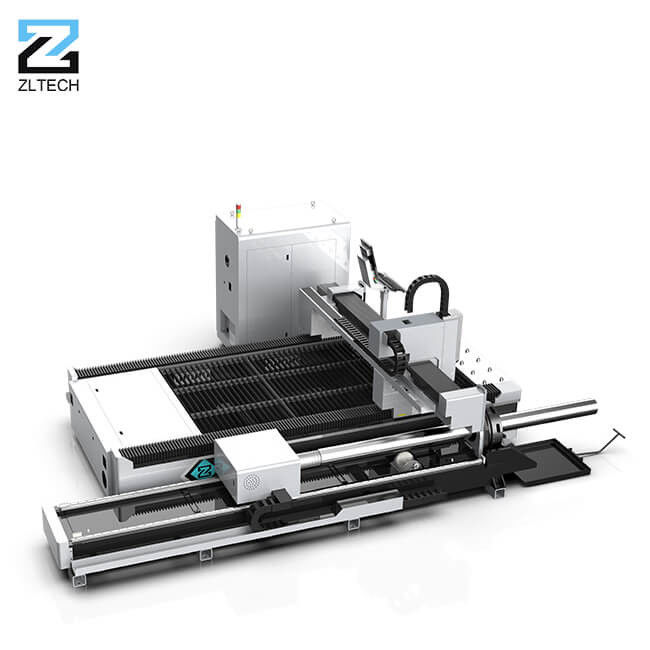

2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w

2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w

Large Image :  2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w

Product Details:
Place of Origin: China
Brand Name: ZLTECH
Certification: CE
Model Number: 3015AC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD5000-50000/PCS
Delivery Time: 25-30 word days
Supply Ability: 10000pcs/year
Contact Now

2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w

Description
Applicable Materials: Carbon /Aluminum/brass/stainless Steel Laser Type: Fiber Laser
Cutting Area: 3000*1500mm Cooling Mod: Water Cooling
Laser Source: MAX; IPG ;Raycus; JPT Servo Motor: Japan Fuji;Japan Yaskawa;Panasomic;Delta
Laser Power: 1000w/1500w/2000w/3000w/4000w/6000w Laser Head: Raytools;Au3tech;Precitec;Worthing;Empower
Warranty: 3 Years Cutting Diameter: 170mm/220mm/330mm
Highlight:

1530 Cnc Fiber Laser Cutter

,

3000w Cnc Fiber Laser Cutter

,

2000w fiber laser tube cutter

ZLTECH 2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w Metal Fiber Laser Cutting Machine



Parameter
Brand
ZLTECH (ZHONGLI LASER)
Model
ZL3015AC
Cutting area
3000×1500mm (size can bed customized)
Fiber laser power
1000w/1500w/2000w/3000w/4000w/6000w/
8000w/12000w/20000w
Fiber laser generator brand
Raycus / Max / IPG / DK
Laser wavelength
1,070-1,080mm
Interface
USB,RJ45
Moving speed
50m/min
Max Cutting speed
120m/min
Position accuracy
±0.03mm
Repeatability accuracy
±0.01mm
Power supply requirement
3 phase 380v 50HZ / 60HZ (customized)
Max acceleration
1.0G
Table load bearing
1500KG
Compatible software
CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers
Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format
LXD / DXF / PLT / AI / Gerber / DWG
Transmit system
Dual Rack & Pinion type
Control system and software
CypCut FSCUT
Cutting head
Raytools / Au3tech / Ospri / Precitec
Reducer
Japan Shimpo / France Motovario
Liner guider system
Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack
Taiwan YYC / Germany HERION
Electrical components
France Schneider
Water chiller
S&A / Hanli brand
Optional
Rotary; Exchanging Table ; Protective Cover
Processing material
Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc
Gross weight
3500KG
Packing size
4550*2250*1550mm
Packing method
20GP







2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 02kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 1







Product Quality
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 2


Strong & Stable Welded Bed
The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile
strength, the working performance is stable.With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Stretched Aluminum Gantry
Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with
4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 3
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 4
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.



Laser Source
100,000 hours life span;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 5
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 6


Dust-proof Electrical Cabinet
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 7
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 8




Servo Motor And Drivers
High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.



YYC Rack Gear
High transmission efficiency;
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 9
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 10



Water Chiller
1. With environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;




Sample Display
Materials:
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 11
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 12
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 13
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 14
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 15
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 16
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 17
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 18
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 19
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 20
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 21
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 22
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 23
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 24
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 25
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 26
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 27
Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power
Company Profile
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 28
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 29
Service
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 30
High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 31
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 32
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 33
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 34
Strict Quality Control:
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
2kw 3000w 1530 CNC Fiber Laser Cutter 1000w 1500w 2000w 35

Please feel free to contact me if you have any questions of our fiber laser machine.

Looking firward your reply.

Thanks & Best Regards
