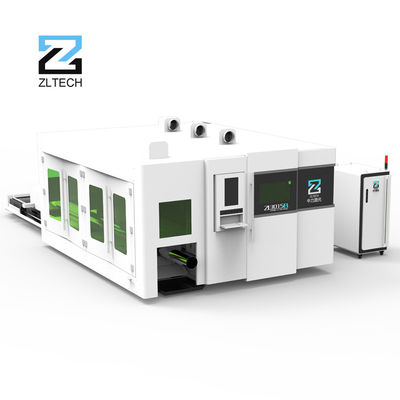

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

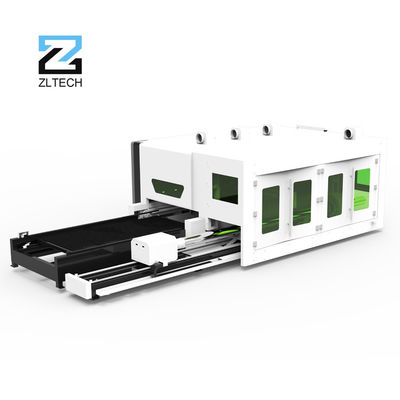

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

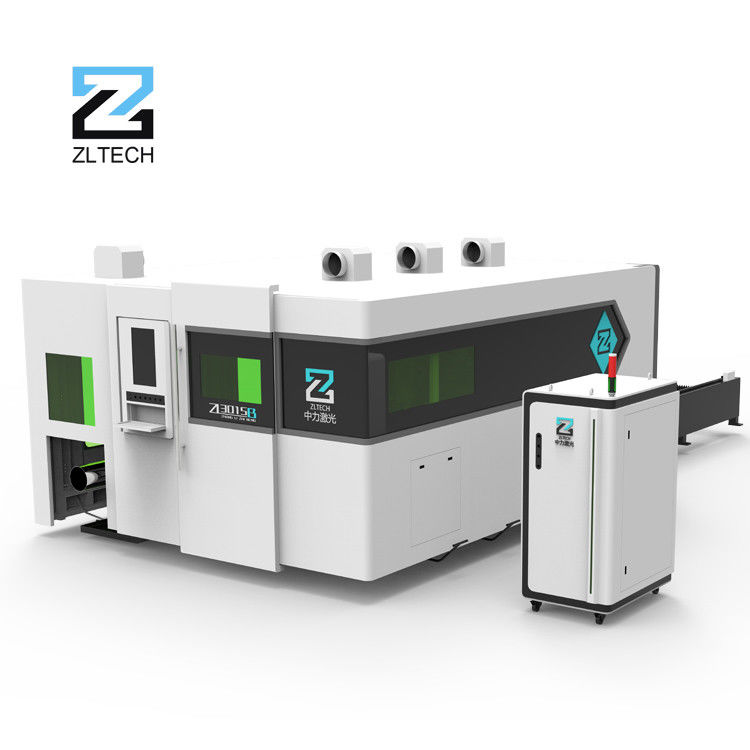

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

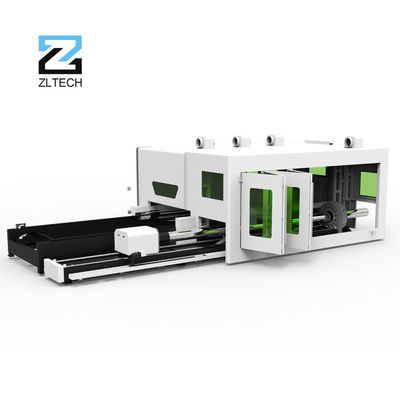

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

Large Image :  3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-3015BCD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

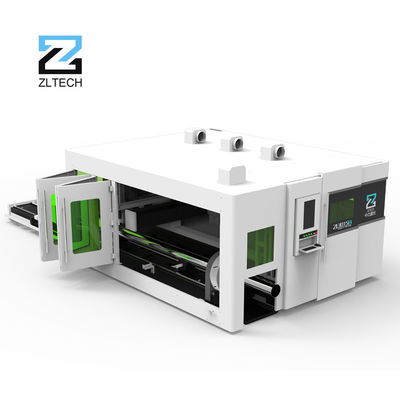

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table

Description
Application: Metal Plate Laser Cutting Cutting Area: 3000*1500mm For Sheet Cut And 6m For Pipe Cut
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX Warranty: 3 Years
Highlight:

3000x1500mm laser cutting machine metal tube

,

laser cutting machine metal tube 1000W

,

1500W laser tube cutting equipment

Tube Pipe Sheet Metal Laser Cutting With Enclosed Protection Cover Fiber Laser Cutting Machine With Exchange Table
(fiber laser machine/metal cut/cnc laser cutting machine)
Specification
1 Product Name CNC Fiber Laser Cutting Machine
2 Product Model ZL-3015BCD
3 Cutting Size

3000mm×1500mm
4000×2000mm, 6000×2000mm

3M/6M/9M/12M for tube cutting
Other size can be customized

With exchange working table
4 Power 1000W 2000W 3000W 4000W 6000W
8000W 10000W 12000W 20000W 40000w
5 Laser Wavelength 1,070-1,080nm
6 Max Moving Speed 120m/min
7 Position Accuracy 0.01mm/m
8 Repeatability Accuracy 0.01mm
9 Fiber Laser Source MAX / RAYCUS / IPG / DK
10 Motor&Drivers Brand Japan Fuji; Japan Yaskawa ; Taiwan Delta;Italy Motor Power
11 Cutting Head Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12 Control System FSCUT / Au3Tech / Raytools / Weihong
13 Ruducer Japan Shimpo / France MOTOVARIO / Germany Lead-motion
14 Compatible Software CorelDraw/AutoCAD/Photoshop/AI
15 Support Graphic Format LXD/.DXF/.PLT/.AI/.Gerber/.DWG
16 Interface USB,RJ45
17 Gear Rack Taiwan YYC / Germany HERION
18 Electrical components Schneider made in France
19 Water Chiller Guangzhou TEYU / Wuhan Hanli /
20 Optional Rotary; Exchanging Table ; Protective Cover
21 Processing Material Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 0
Application

3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 1

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.
The machine can cut not only metal sheet but also metal pipe.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 2
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality
Aviation Tensile Aluminum Alloy Beam
The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 3

Stable & Strong Welded Steel Bed
The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing
and natural aging, the welding stress is eliminated, which
can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 4
Controller
We use FSCUT3000S,FSCUT5000, Weihong, etc.If you want to use another controller you needs, we support adjust configurations.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 5
Laser source
We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 6
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 7
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 8
BEUT Pneumatic Chuck
A well-known brand, the rear cassette has an air blowing function to remove dust and waste accumulation, and does not affect the performance and service life of the rear chuck.
Gear transmission Chuck
Accuracy, speed and life are better than belt transmission.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 93000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 10

With a fully protective enclosed design
--The observation window adopts an European CE Standard laser protective glass.
--The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 11

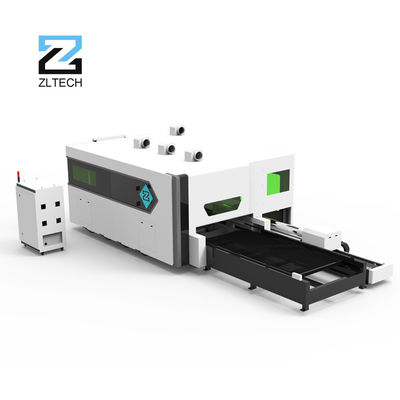

Exchange working table
Adopts high-speed parallel exchange table design, dual working table exchange at the same time, stable and reliable transmission mode. Fast, shorten the exchange time, save the loading and unloading auxiliary time.
Exchange motor controlled by frequency converter, can finish the table exchange within 15S.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 12
Water chiller
Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 13
Dust-proof Electrical Cabinet With Air Conditioner
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life
span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 14
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 15
Servo motors and drivers
Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 163000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 17
Good Quality Gears
Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 18
Packing
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 19
Company Profile
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 20
Service
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 21
High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 22
Strict Quality Control:
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 23
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 24
Independent Experienced Design Department (Unique Design For You)
Zhongli Laser established one independent design team to provide customized service and meet the different working requirements. This team owns 12 professional engineers and they will update and innovate regularly
Exhibition
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 25
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 26
3000x1500mm Laser Cutting Machine Metal Tube 1000W 1500W 2000W With Exchange Table 27
FAQ
1.If I do not know how to operate the machine, how you can help me ?

First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?

Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
