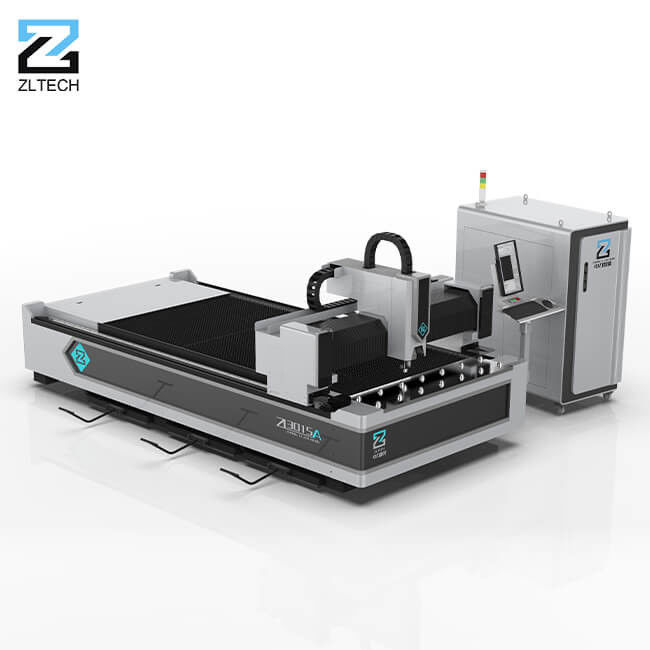

3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w

3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w

Large Image :  3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w

Product Details:
Place of Origin: China
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: 3015A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD10000-50000/PCS
Packaging Details: Plywood box
Delivery Time: 10-20 word days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/year

3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w

Description
Applicable Materials: Carbon /Aluminum/brass/stainless Steel Cutting Area: 3000*1500mm
Laser Source: MAX; IPG ;Raycus Servo Motor: Japan Fuji;Japan Yaskawa;Panasomic;Delta
Laser Power: 1000w/1500w/2000w/3000w/4000w/6000w Laser Head: Raytools;Au3tech;Precitec;Worthing;Empower
Warranty: 3 Years Water Chiller: DVT,Hanli,S&A
Highlight:

3000x1500mm fiber laser cutting metal sheet machine

,

fiber laser cutting metal sheet machine 1000w

,

3000w laser metal sheet cutter

Fiber Laser Cutting Machine 1000w 2000w 3000w for Sheet Metal Tube Carbon Aluminum Brass

Product Description
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 0

Specification
1
Product Name
CNC Fiber Laser Cutting Machine
2
Product Model
ZL-3015A
3
Cutting Size
3000mm×1500mm
4000×2000mm, 6000×2000mm
Other size can be customized
4
Power
1000W 2000W 3000W 4000W 6000W
8000W 10000W 12000W 20000W
5
Laser Wavelength
1,070-1,080nm
6
Max Moving Speed
120m/min
7
Position Accuracy
0.01mm/m
8
Repeatability Accuracy
0.01mm
9
Fiber Laser Source
MAX / RAYCUS / IPG / DK
10
Motor&Drivers Brand
Japan Fuji; Japan Yaskawa ; Taiwan Delta
11
Cutting Head
Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12
Control System
FSCUT / Au3Tech / Raytools / Weihong
13
Ruducer
Japan Shimpo / France MOTOVARIO / Germany Lead-motion
14
Compatible Software
CorelDraw/AutoCAD/Photoshop/AI
15
Support Graphic Format
LXD/.DXF/.PLT/.AI/.Gerber/.DWG
16
Interface
USB,RJ45
17
Gear Rack
Taiwan YYC / Germany HERION
18
Electrical components
Schneider made in France
19
Water Chiller
Guangzhou TEYU / Wuhan Hanli /
20
Optional
Rotary; Exchanging Table ; Protective Cover
21
Processing Material
Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc
Application
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 1

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 2
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality

Stable & Strong Welded Steel Bed
The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing
and natural aging, the welding stress is eliminated, which
can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 3
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 4

Controller
We use FSCUT1000, FSCUT2000,etc. and CypCut or Cypone software.
If you want to use another controller you needs, we support adjust configurations.

Laser source
We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.

3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 5

Auto Focus Laser Cutting Head

BM110 and BM111 Raytools Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Water chiller
Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 6
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 7
Dust-proof Electrical Cabinet With Air Conditioner
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life
span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.

Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 8
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 9
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 10

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 11
Good Quality Gears
Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm

Reducer
Japan Shimpo / France MOTOVARIO reducers
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 12
Recommended by seller


Packing & Delivery
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 13
Company Profile
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 14


ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.

Why Choose Us
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 15

High Quality Requirement from ourself

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 16

Strict Quality Control

ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 17

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.

Professional After-Sale Service

ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.
3000x1500mm Fiber Laser Cutting Metal Sheet Machine 1000w 2000w 3000w 18
FAQ
1.If I do not know how to operate the machine, how you can help me ?

First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?

Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
