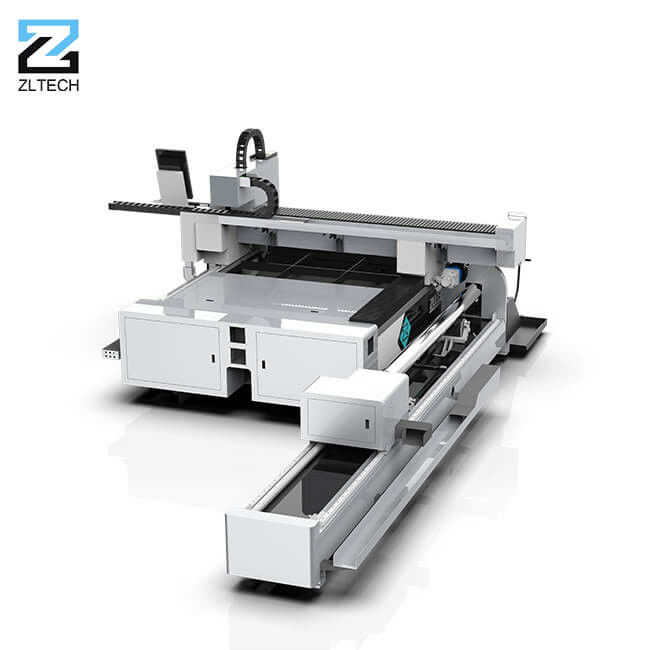

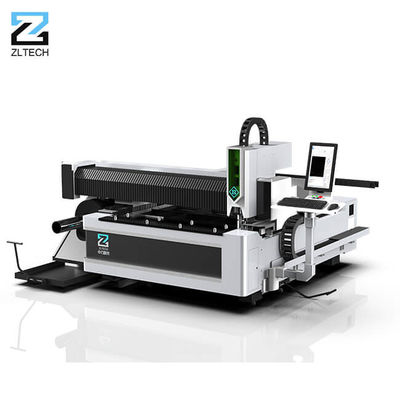

1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W

1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W

Large Image :  1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-1390AC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W

Description
Application: Metal Plate Laser Cutting Cutting Area: 1300*900mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Type: Fiber Laser Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX
Warranty: 3 Years
Highlight:

1300x900 Sheet And Tube Laser Cutting Machine

,

Sheet And Tube Laser Cutting Machine CNC

,

1000W metal pipe laser cutter

Product Description



Factory Price 1000W ZLTECH 1300*900 Cnc Sheet And Tube Metal Fiber Laser Cutting Tube Machine For Sale

1390 Stainless Steel Aluminum Sheet And Tube Fiber CNC Laser Cutting Machines With Raycus Laser
(fiber laser machine/metal cut/cnc laser cutting machine)
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 0
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 1
Specification
1
Product Name
CNC Fiber Laser Cutting Machine
2
Product Model
ZL-3015AC
3
Cutting Size
3000mm×1500mm
4000×2000mm, 6000×2000mm
Other size can be customized
4
Power
1000W 2000W 3000W 4000W 6000W
8000W 10000W 12000W 20000W
5
Laser Wavelength
1,070-1,080nm
6
Max Moving Speed
120m/min
7
Position Accuracy
0.01mm/m
8
Repeatability Accuracy
0.01mm
9
Fiber Laser Source
MAX / RAYCUS / IPG / DK
10
Motor&Drivers Brand
Japan Fuji; Japan Yaskawa ; Taiwan Delta
11
Cutting Head
Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12
Control System
FSCUT / Au3Tech / Raytools / Weihong
13
Ruducer
Japan Shimpo / France MOTOVARIO / Germany Lead-motion
14
Compatible Software
CorelDraw/AutoCAD/Photoshop/AI
15
Support Graphic Format
LXD/.DXF/.PLT/.AI/.Gerber/.DWG
16
Interface
USB,RJ45
17
Gear Rack
Taiwan YYC / Germany HERION
18
Electrical components
Schneider made in France
19
Water Chiller
Guangzhou TEYU / Wuhan Hanli /
20
Optional
Rotary; Exchanging Table ; Protective Cover
21
Processing Material
Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc
Application
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 2

Materials :

Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel,
spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium
and other metal plates and pipes.

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 3
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 4

Aviation Cast Aluminum Alloy Beam

Machine adopts aviation cast aluminum alloy beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 5

Stable & Strong Welded Steel Bed

The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 6

Controller

We use FSCUT3000S and CypCut TubePro software.
FSCUT3000S system is designed for tube and sheet cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) ,free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 7

Laser source

We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 8

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 9

Tube cutting part

We support 3m/6m/9m/12m length area for cutting tube materials, if you have other cutting length requirements we also support.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 10

Tube cutting support

Two supports for 6m tube cutting.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 11

BEUT Pneumatic Chuck

A well-known brand, the rear cassette has an air blowing function to remove dust and waste accumulation, and does not affect the performance and service life of the rear chuck.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 12

Gear transmission

Accuracy, speed and life are better than belt transmission.


Water chiller
Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 13
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 14







Dust-proof Electrical Cabinet With Air Conditioner
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life
span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.







Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 15
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 16
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 17

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 18




Good Quality Gears
Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm




Reducer
Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 19
Packing & Delivery
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 20
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 21
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 22
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 23
Company Profile
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 24
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 25
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 26
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 27
ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.
Why Choose Us
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 28

High Quality Requirement from ourself

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 29

Strict Quality Control

ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 30

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.
1300x900 Sheet And Tube Laser Cutting Machine CNC 1000W 31

Professional After-Sale Service

ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.

FAQ
1.If I do not know how to operate the machine, how you can help me ?

First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?

Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
