Best Price Factory Manufacturer Metal Laser Cutting Machines CNC Fiber Laser Cutting Machine 1000w 2000w 3000w 4000w

Name: Best Price Factory Manufacturer Metal Laser Cutting Machines CNC Fiber Laser Cutting Machine 1000w 2000w 3000w 4000w
Brand: ZLTECH
SKU: ZL-3015A
Price: 12000 USD
Availability: InStock
Rating: 4.8 (106 reviews)

All Products

Fiber Laser Cutting Machine
(54)

Metal Pipe Laser Cutting Machine
(8)

Sheet And Tube Laser Cutting Machine
(29)

Metal Laser Cutter
(5)

Fiber Laser Tube Cutter
(9)

Small Fiber Laser Cutting Machine
(19)

High Precision Fiber Laser Cutting Machine
(10)

Sheet Metal Laser Cutter
(19)

Laser Welding Machine
(10)

Fiber Laser Welder
(10)

Laser Cleaning Machine
(10)

Laser Rust Removal Machine
(10)

Certification

Customer Reviews

This is Derek from UK. We bought one 3000w fiber laser cutter from ZLTECH on year 2010. Their engineer David provided us technical support and machine works very well. I will be in touch with ZLTECH next year for one bigger power laser.

—— Derek from UK

This is Seif from Israel, one of my friend recommended ZLTECH to me and I bought one enclosed fiber laser cutting machine from them.Machine runs perfectly and it helped us a lot, its cutting accuracy is much better than our old plasma cutter.

—— Seif from Israel

I'm Online Chat Now

Best Price Factory Manufacturer Metal Laser Cutting Machines CNC Fiber Laser Cutting Machine 1000w 2000w 3000w 4000w

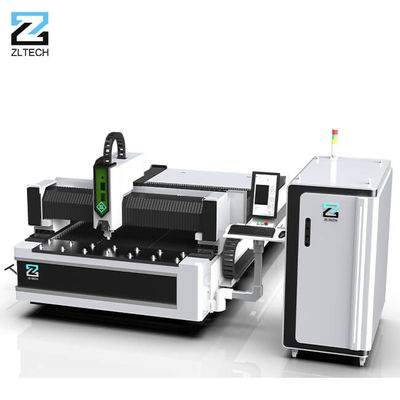

Large Image : Best Price Factory Manufacturer Metal Laser Cutting Machines CNC Fiber Laser Cutting Machine 1000w 2000w 3000w 4000w

Product Details:

Place of Origin:	Jinan city, China
Brand Name:	ZLTECH
Certification:	CE, FDA
Model Number:	ZL-3015A

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	USD12000-USD22,000 per set
Packaging Details:	Strong water-proof wood case
Delivery Time:	10-20 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200 Sets / month

Contact Now

Best Price Factory Manufacturer Metal Laser Cutting Machines CNC Fiber Laser Cutting Machine 1000w 2000w 3000w 4000w

Description

Laser Power:	1kw-20kw	Material:	Metal (cs, Ss, Aluminum, Brass, Copper)
Cutting Size:	3000*1500mm	Warranty:	3 Years
System:	CypCut / Au3tech (customized)	Servo Motor:	Japan Fuji / Yaskawa
Laser Source:	Raycus / Max / IPG	Max Cutting Speed:	120m/min
Guide Rails:	Taiwan Hiwin	Transmission:	Taiwan YYC
Cutting Thickness:	1-80mm

Products Overview

Product Quality

Strong & Stable Welded Bed

The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile

strength, the working performance is stable. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Grade Tensile Cast Aluminum Beam

Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with

4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong

deformation resistance.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Laser Source

100,000 hours life span;

Stable and cost-efficient;

Remote networking diagnosis system;

Free maintenance;

Dust-proof Electrical Cabinet

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.

Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the

high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra-low power consumption and

high resolution.

The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly

eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation

Servo Motor And Drivers

High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.

YYC Rack Gear

High transmission efficiency;

The transmission is sensitive and stable;High positioning accuracy;

Good accuracy retention;

High transmission rigidity;

Good synchronization performance

Water Chiller

With environmental refrigerant;

±1℃ precise temperature control;

The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

Parameter

Brand	ZLTECH
Model	ZL3015A
Cutting area	3000×1500mm (customized)
Fiber laser power	1000w/1500w/2000w/3000w/4000w/6000w/ 8000w/12000w/20000w
Fiber laser generator brand	Raycus / Max / IPG / DK
Laser wavelength	1,070-1,080mm
Interface	USB,RJ45
Moving speed	50m/min
Max Cutting speed	120m/min
Position accuracy	±0.03mm
Repeatability accuracy	±0.02mm
Power supply requirement	3 phase 380v 50HZ / 60HZ (customized)
Max acceleration	1.0G
Table load bearing	1500KG
Compatible software	CorelDraw / AutoCAD / Photoshop / AI
Brand of motor and drivers	Japan Fuji; Japan Yaskawa; Taiwan Delta
Support graphic format	LXD / DXF / PLT / AI / Gerber / DWG
Transmit system	Dual Rack & Pinion type
Control system and software	CypCut FSCUT
Cutting head	Raytools / Au3tech / Ospri / Precitec
Reducer	Japan Shimpo / France Motovario
Liner guider system	Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack	Taiwan YYC / Germany HERION
Electrical components	France Schneider
Water chiller	S&A / Hanli brand
Optional	Rotary; Exchanging Table ; Protective Cover
Processing material	Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc
Gross weight	3500KG
Packing size	455022501550mm
Packing method	20GP

Sample Display

Materials:

Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.

Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power

Company Profile

Service

High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control:ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.

FAQ

1.Are you a factory or a foreign trade company?

We have factory production machines and the price is very competitive.

We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?

Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
3. If I do not know how to operate the fiber laser cutter, how you can help me?

First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?

Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.

We have a shipping company that has cooperated for many years, which can help you save costs.

5.How about the price?Can you make it cheaper?

The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry

6.How about the payment?

T/T,30% deposit, and balance is after the production is finished.

Also we accept the PAYPAL, west union,etc.
7.What‘s your delivery time?

For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.

8 Do I need the gas for my fiber laser cutting machine?

Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
