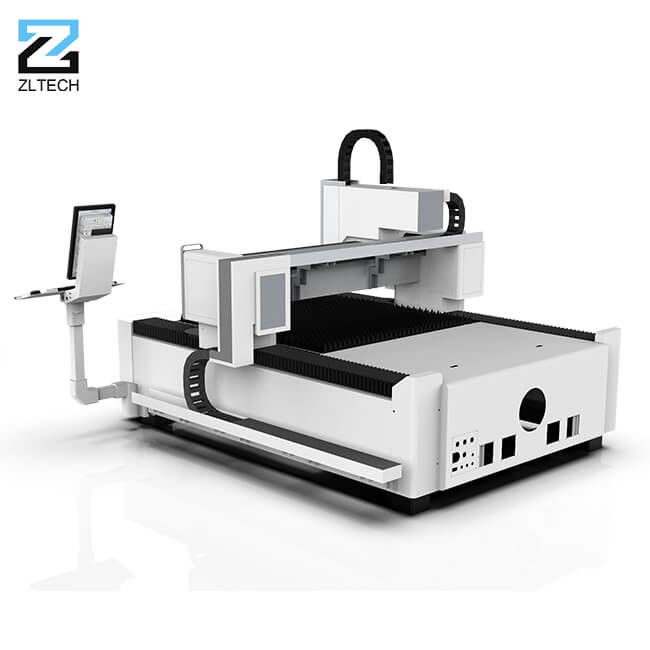

1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter

1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter

Large Image :  1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-1390A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter

Description
Application: Metal Plate Laser Cutting Cutting Area: 1300*900mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Type: Fiber Laser Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX
Warranty: 3 Years
Highlight:

1390 1000w fiber laser cutting machine

,

1000w fiber laser cutting machine 1.5kw

,

High Precision Mini Laser Cutter

1300*900mm Fiber Laser Cutting Machine

(fiber laser machine/metal cut/cnc laser cutting machine)



1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 0



































Specification:

1
Product Name
Metal Fiber Laser Cutting Machine
2
Product Model
ZL-1390A
3
Cutting Size
1300mm×900mm (customized)
4
Power
1000W 1500W 2000W 3000W 4000W 6000W 8000W 10000W 12000W 20000W
5
Max Moving Speed
120m/min
6
Position Accuracy
0.01mm/m
7
Fiber Laser Source
Raycyus /Max/ IPG
8
Motor&Drivers Brand
Japanese Fuji/Yaskawa / Taiwan Delta
9
Cutting Head
Raytools / Precitec/Au3tech
10
Control System
CpyCut/Au3tech
11
Ruducer
Japanese Shimpo/ French Motovario/ Germany Neugart
12
Guide
Taiwan Hiwin/PEK
13
Rack
Taiwan YYC/APEX Germany HERION,etc
14
Water chiller
Hanli/Tongfei/S&A,etc.
15
Compatible Software
CorelDraw/AutoCAD/Photoshop/AI
16
Support Graphic Format
LXD/.DXF/.PLT/.AI/.Gerber/.DWG
17
Gear Rack
Taiwan YYC / Germany HERION
18
Electrical components
Schneider made in France
19
Water Chiller
Guangzhou S&A / Wuhan Hanli /
20
Optional
Rotary; Exchanging Table ; Protective Cover
21
Processing Material
Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc



Application:

1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 1

Materials :

Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel,
spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium
and other metal plates and pipes.

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 2
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality:
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 3
Machine configurations:
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 2

Laser Source / China Raycus

Raycus, as a leading developer and manufacturer of high performance fiber laser,is stable and enery-saving, which is applied in numerous markets.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 3

Cutting Head / Switzerland Raytools

Raytools is currenly the most popular and used cutting head brand in the market cause its high presion and cost performance.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 4

Servo Motor / Japan Fuji

Fuji servo motor can withstand high speed and high acceleration, which decides the high stability of laser cutting machine.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 5

30mm Guide Rails / Taiwan Hiwin

Hiwin high positioning accuracy Guide Rails makes the whole cutting machine works in a high presion situation.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 6

Rack gear / Taiwan YYC

YYC high presion Rack and Gear make sure the whole cutting machine works in a high presion situation.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 7

Control System / China CypCut

Powerful functions, user-friendly design and easy operation make it currently the largest brand of CNC laser cutting machine systems in China.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 8

Reducer / Japan Desbore

The Desbore reduccer uses different types of gear technology. No matter what type of equipment we use, we can find the perfect fit in this high precision product.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 9

Water Chiller / China Hanli

Hanli is a widely used Water Chiller brand in China due to its excellent quality and leading research retrength. It can keep the laser source and cuuting head in a suitable work temperature.
4020A Fiber Laser Cutting Machine 1000w 2000w 3000w High Precision CNC Sheet Metal Cutter Single Platform 10

Independence Electrical Cabinet

All electrical components and control parts were put into the dust-proof separate control boxes, to ensure the service life of the components, also makes its easier to repair when the accessories are damaged.
Packing & Delivery:
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 13
Company Profile:
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 14
ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.
1390 1000w Fiber Laser Cutting Machine 1.5kw High Precision Mini Laser Cutter 15
In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.
FAQ:
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2. What's your warranty?
Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.
3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.
4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.
5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
