3000W 4000W Sheet Metal Laser Cutter 6000W 6000x1500mm 8000W 10000W 12000W 20000W

Large Image : 3000W 4000W Sheet Metal Laser Cutter 6000W 6000x1500mm 8000W 10000W 12000W 20000W

Product Details:

Place of Origin:	CHINA
Brand Name:	ZLTECH
Certification:	CE,FDA
Model Number:	ZL-3015BD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD12000-25000 per Piece
Packaging Details:	Plastic protective film, export plywood box
Delivery Time:	10-30days
Payment Terms:	T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability:	60pcs/month

Contact Now

3000W 4000W Sheet Metal Laser Cutter 6000W 6000x1500mm 8000W 10000W 12000W 20000W

Description

Application:	Metal Plate Laser Cutting	Cutting Area:	6000*1500mm
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cooling Mode:	WATER COOLING
Laser Source Brand:	MAX; IPG, Raycus,JPT	Servo Motor Brand:	Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand:	Cypcut	Laser Power:	1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Cutting Materials:	Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS	Laser Head Brand:	Raytools,Au3tech, Precitec,Worthing, Empower,WSX
Warranty:	3 Years
Highlight:	6000W Sheet Metal Laser Cutter , 4000W Sheet Metal Laser Cutter , 8000W laser cnc sheet metal cutting machine

ZLTECH Full Enclosed Protection Cover Fiber Laser Cutting Machine with Exchange Table 2KW Laser Cutting

Sheet Metal Laser Cutter Fiber Laser Cutting Machine with Exchange Table and Protection Cover

(fiber laser machine/metal cut/cnc laser cutting machine)

Specification

1	Product Name	CNC Fiber Laser Cutting Machine
2	Product Model	ZL-3015BD
3	Cutting Size	3000mm×1500mm 4000×2000mm, 6000×2000mm Other size can be customized With exchange working table
4	Power	1000W 2000W 3000W 4000W 6000W 8000W 10000W 12000W 20000W 40000w
5	Laser Wavelength	1,070-1,080nm
6	Max Moving Speed	120m/min
7	Position Accuracy	0.01mm/m
8	Repeatability Accuracy	0.01mm
9	Fiber Laser Source	MAX / RAYCUS / IPG / DK
10	Motor&Drivers Brand	Japan Fuji; Japan Yaskawa ; Taiwan Delta;Italy Motor Power
11	Cutting Head	Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12	Control System	FSCUT / Au3Tech / Raytools / Weihong
13	Ruducer	Japan Shimpo / France MOTOVARIO / Germany Lead-motion
14	Compatible Software	CorelDraw/AutoCAD/Photoshop/AI
15	Support Graphic Format	LXD/.DXF/.PLT/.AI/.Gerber/.DWG
16	Interface	USB,RJ45
17	Gear Rack	Taiwan YYC / Germany HERION
18	Electrical components	Schneider made in France
19	Water Chiller	Guangzhou TEYU / Wuhan Hanli /
20	Optional	Rotary; Exchanging Table ; Protective Cover
21	Processing Material	Stainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc

Application

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

Cutting Thickness

Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)

Product Quality

Aviation Tensile Aluminum Alloy Beam
The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Stable & Strong Welded Steel Bed

The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing
and natural aging, the welding stress is eliminated, which
can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

Controller

We use FSCUT1000, FSCUT2000,etc. and CypCut or Cypone software.

If you want to use another controller you needs, we support adjust configurations.

Laser source

We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

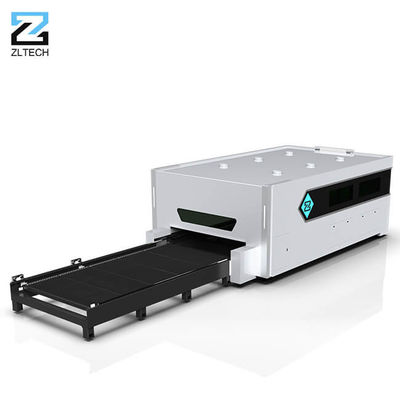

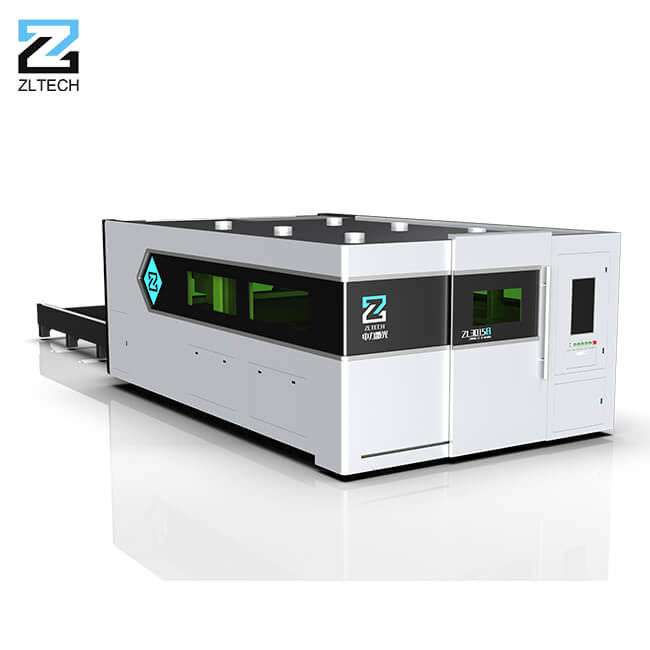

With a fully protective enclosed design

--The observation window adopts an European CE Standard laser protective glass.
--The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly

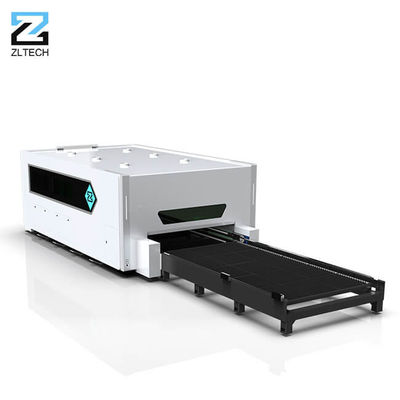

Exchange working table

Adopts high-speed parallel exchange table design, dual working table exchange at the same time, stable and reliable transmission mode. Fast, shorten the exchange time, save the loading and unloading auxiliary time.
Exchange motor controlled by frequency converter, can finish the table exchange within 15S.

Water chiller

Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.

Dust-proof Electrical Cabinet With Air Conditioner

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life
span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

Good Quality Gears

Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm

Packing

Company Profile

Service

High Accuracy Requirement from ZLTECH:

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control:

ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.

Independent Experienced Design Department (Unique Design For You)
Zhongli Laser established one independent design team to provide customized service and meet the different working requirements. This team owns 12 professional engineers and they will update and innovate regularly
