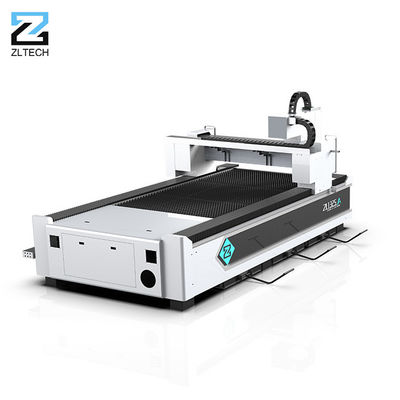

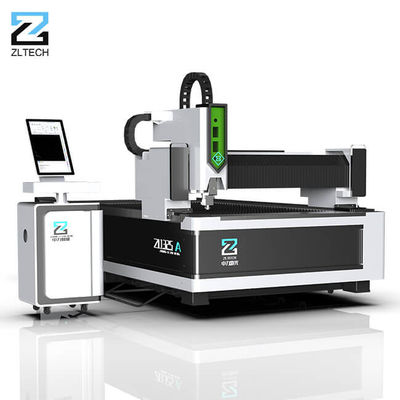

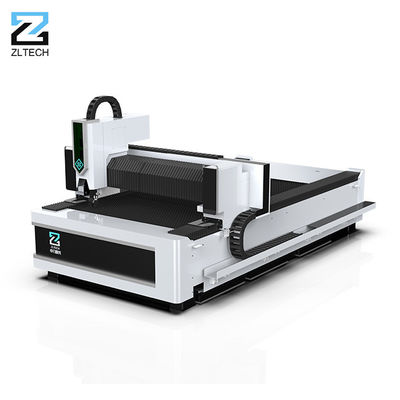

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel

Large Image :  1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-1325A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel

Description
Application: Metal Plate Laser Cutting Cutting Area: 1300*2500mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX Warranty: 3 Years
Highlight:

3kw high power fiber laser cutting machine

,

2kw high power fiber laser cutting machine

,

1kw fibre metal laser cutting machine

1325 Model CNC 1kw 2kw 3kw High Power Fiber Laser Cutting Machine For Stainless Steel

Product Paramenters
1
Product Name
Metal Fiber Laser Cutting Machine
2
Product Model
ZL-1325A
3
Cutting Size
1300mm×2500mm
4
Power
1000W 2000W 3000W 4000W 6000W 8000W 10000W 12000W 20000W
5
Max Moving Speed
120m/min
6
Position Accuracy
0.01mm/m
7
Fiber Laser Source
Raycyus /Max/ IPG
8
Motor&Drivers Brand
Japanese Fuji/Yaskawa / Taiwan Delta
9
Cutting Head
Raytools / Precitec
10
Control System
CpyCut
11
Ruducer
Japanese Shimpo/ French Motovario/ Germany Neugart
12
Guide
Taiwan Hiwin
13
Rack
Taiwan YYC/APEX Germany HERION,etc
14
Water chiller
Hanli/Tongfei/S&A,etc.
15
Compatible Software
CorelDraw/AutoCAD/Photoshop/AI
16
Support Graphic Format
LXD/.DXF/.PLT/.AI/.Gerber/.DWG



Product Overview
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 0
Single Platform Fiber Laser Cutting Machine
It is a high-performance single working table fiber cutting machine. The bed adopts a 6mm welding process, and has annealing treatment process and high precision milling to increase the strength. Internal reinforcing ribs increase tensile resistance and toughness. The gantry is extruded with 4300 tons of pressure and processed by T6 heat treatment process. It has high strength and strong resistance to deformation. Light weight, speed up the movement, the machine adopts Japanese servo motor, German rack, automatic cutting head and other configurations, showing good performance quality.
Application
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 1

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 2
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality
Aviation Cast Aluminum Alloy Beam
Machine adopts aviation cast aluminum alloy beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 3

Stable & Strong Welded Steel Bed

The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 4

Controller

We use shanghai Friendess FSCUT2000 controller and CYPCUT software

FSCUT2000C medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabrication industry, with features of easy to install and adjust, excellent performance and fully integrated solutions.

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 5

Laser source

We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 6

Laser Head

We use Swiss Raytools BM110 auto focus laser cutting head.

1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 7
Water chiller
Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the
other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water
chiller you can choose you needs.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 8

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 91kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 10
Good Quality Gears
Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 11
Company Profile
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 121kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 13
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 141kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 15
ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.
Why Choose Us
High Quality Requirement from ourself
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
Strict Quality Control
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 161kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 17

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.
1kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 181kw 2kw 3kw High Power Fiber Laser Cutting Machine 1325 Model CNC For Stainless Steel 19

Professional After-Sale Service

ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.

FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?
Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
