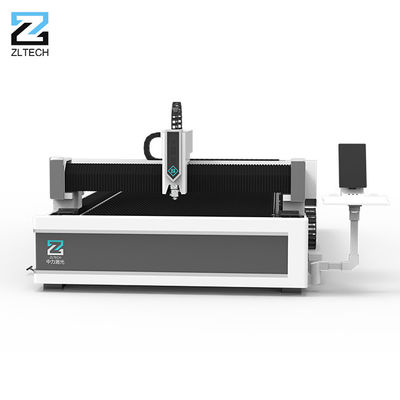

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head

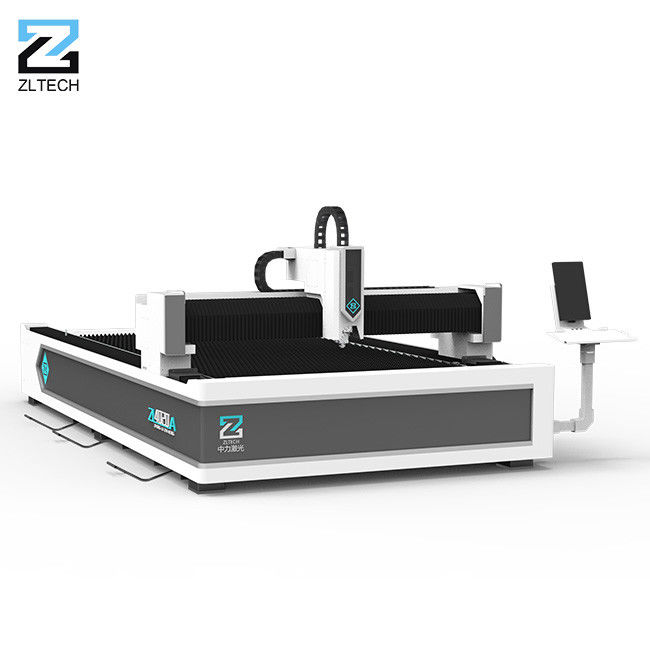

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head

Large Image :  4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head

Product Details:
Place of Origin: China
Brand Name: ZLTECH
Certification: CE FDA
Model Number: ZL4020A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15,000/set
Packaging Details: Sturdy waterproof wooden box
Delivery Time: 15-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20sets/month
Contact Now

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head

Description
Cutting Area: 4000mm*2000mm Laser Head Brand: BM110、BM114
Laser: Long-lasting Laser Source: MAX/Raycus/IPG/JPT/DK/reci/EVERFOTON/bwt
Run:: Precision
Highlight:

Raycus Fiber Laser Cutter Machines

,

4000x2000mm Fiber Laser Cutter Machines

,

Precision 2kw fiber laser cutter

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 1000w 2000w 3000w

4020 Fiber Laser Cutting Machine for Sheet Metal

The main motor adopts the gantry type double drive structure, which has good rigidity and stable operation; the steel plate of the fuselage is welded and annealed by furnace to relieve stress, and the precision is durable and stable; Transmission parts adopt a full set of imported gear racks, which have high processing precision and long service life; imported optical fibers are used The generator has high electro-optical conversion efficiency and low operating cost; The optical path adopts optical fiber transmission, which is easy to use and low maintenance cost. The automatic programming software can manually and automatically set any material, flexible operation and high material utilization rate.



Spec:

Brand ZLTECH
Model ZL4020A
Cutting area 4000×2000mm (size can bed customized)
Fiber laser generator brand Raycus / Max
Laser wavelength 1,070-1,080mm
Interface USB
Moving speed 50m/min
Max Cutting speed 120m/min
Position accuracy ±0.03mm
Repeatability accuracy ±0.02mm
Power supply requirement 3 phase 380v 50HZ / 60HZ (customized)
Max acceleration 1.0G
Table load bearing 2000KG
Brand of motor and drivers Japan Fuji; Japan Yaskawa
Support graphic format LXD / DXF / PLT / AI / Gerber / DWG
Transmit system Dual Rack & Pinion type
Control system and software CypCut FSCUT
Cutting head Raytools / Au3tech / Ospri / Precitec
Reducer Japan Shimpo
Liner guider system Taiwan Hiwin / Taiwan PMI / Italy PEK
Gear rack Taiwan YYC / Germany HERION
Electrical components France Schneider
Water chiller S&A / Hanli





4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 0

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 1



Product Quality:

4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 2

Strong & Stable Welded Bed
With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

Aviation Stretched Aluminum Gantry
The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 3
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 4
Auto Focus Laser Cutting Head
It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 5

Dust-proof Electrical Cabinet

Also, we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.
Intelligent Software With Alarm Function

The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 6
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 7




Servo Motor And Drivers
Gantry double drive mechanism has high damping coefficient, good rigidity, could withstand high speed and high acceleration.



YYC Rack Gear

Good accuracy retention;
High transmission rigidity;
Good synchronization performance
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 8



Materials:
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 9
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 10
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 11
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 12
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 13
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 14
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 15
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 16
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 17
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 18
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 19
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 20
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 21
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 22
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 23
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 24
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 25
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 26
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 27
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 28



High Accuracy Requirement from ZLTECH:
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 29
Independent Experienced Design Department (Unique Design For You)
Zhongli Laser established one independent design team to provide customized service and meet the different working requirements. This team owns 12 professional engineers and they will update and innovate regularly
4000*2000mm Fiber Laser Cutter Machines MAX/Raycus Laser Raytools Cutting Head 30
