Product Details:
|
| Highlight: | Portable Laser Rust Removal Machine,Laser Rust Removal Machine 1000W,3000W 1000 watt laser rust remover |
||
|---|---|---|---|

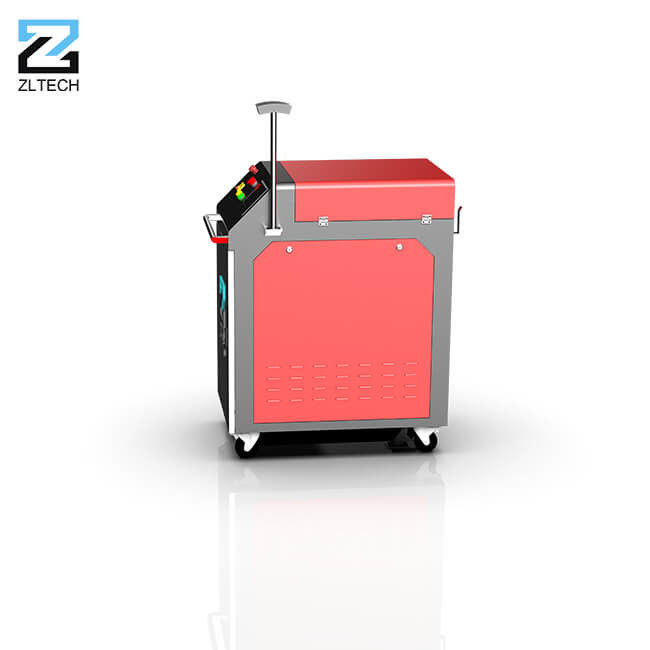

Factory Made Laser Cleaning Rust Oil Machine Portable Fiber Rust Removal Laser Cleaning Machine
Laser cleaning machine can be used in the following ways:
Metal surface derusting
Welding surface/spraying surface pretreatment
Surface except lacquer paint processing
Stone surface attachments to remove
Surface oil, dirt and stains, dirt cleaning
Rubber mold residue
Surface coating, coating removal
Parameter of Handheld Portable Laser Rust Removal Machine :
| Laser Power | 1000W / 1500W / 2000W / 3000W |
| Laser working mode | Continuous |
| Laser wavelength | 1064nm |
| Laser type | Optical fiber |
| Fiber length | 10m |
| Scan amplitude | 60mm |
| Way of working | Handheld/Automated |
| Refrigeration unit | Intelligent dual temperature chiller |
| Total power | 6KW |
| Cleaning Speed | 10-50 m²/hour |
| The distance between cleaning head to cleaning material | 300-500mm (400mm is better) |
| Working time | It can work continuously for 24 hours |
| Working environment temperature range | 15-35℃ |
| Humidity range of working environment | <70% non-condensing |
| Machine size(length x width x height) | 350mm*600mm*1300mm |
| Voltage requirement | AC220±10%VAC,50/60HZ |
*Application field:
Laser cleaning machine is suitable for automobile, mold, aerospace, 3C electronics, medical equipment, rail transit, steel
manufacturing and other industries Laser cleaning machines can clean rust, oil, paint, oxide layers, welds, etc.
Handheld laser cleaning machine, it has following advantages:
1. Non-contact cleaning, to avoid secondary pollution;
2. Cleaning of high precision, strong controllability;
3. No consumables, environmental protection;
4. Simple operation, can work as hand-held or manipulator automation cleaning.
5. System stability, long service life
Laser Cleaning Machine Feature :
1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
*Frequently Asked Questions
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2.Is it possible to clean the mold?
Yes, it is.
3.The effect of paint and rust removal :
Very good, we will show you the videos. Please share your email or whatsapp.
4.Language interface:
Support Chinese and English, Russia, Korean, Spanish, etc.
If you need other language, please tell us and we will set it for you.
