Product Details:
|
| Application: | Metal Plate Laser Cutting | Cutting Area: | 600*900mm |
|---|---|---|---|
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cooling Mode: | WATER COOLING |
| Laser Source Brand: | MAX; IPG, Raycus,JPT | Servo Motor Brand: | Japan Fuji, Japan Yaskawa,Panasomic, Delta |
| Control System Brand: | Raytools | Laser Power: | 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W |
| Voltage: | 3 Phase,380v,50Hz Or Customized | Cutting Materials: | Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS |
| Laser Head Brand: | Raytools,Au3tech, Precitec,Worthing, Empower,WSX | Warranty: | 3 Years |
| Highlight: | 6090 High Precision Fiber Laser Cutting Machine,1390 High Precision Fiber Laser Cutting Machine,2kw 1000 watt fiber laser cutting machine |
||
|
1
|
Product Name
|

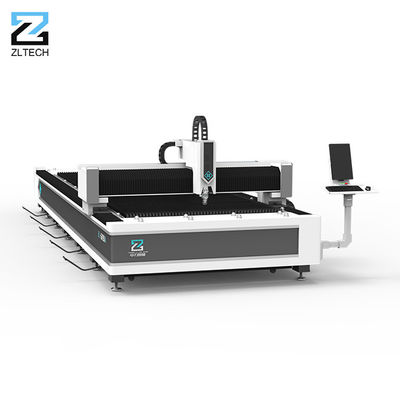

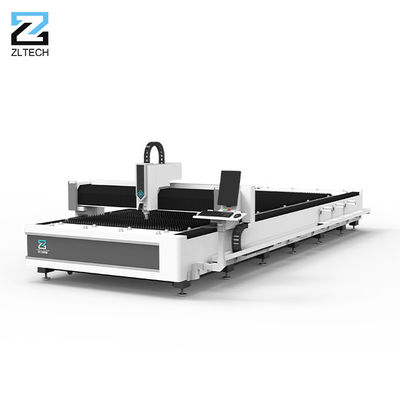

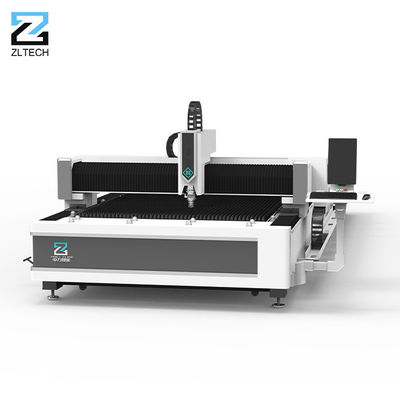

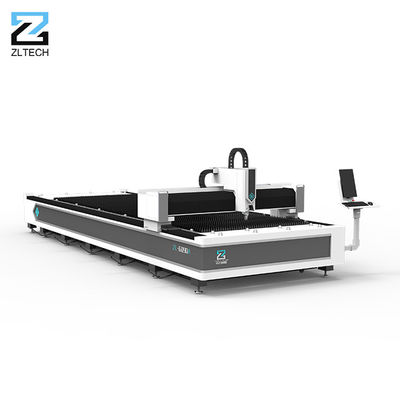

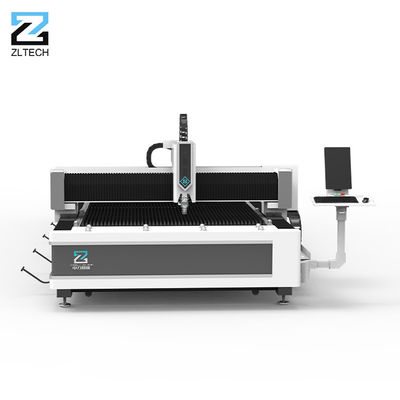

High precision fiber laser cutting machine
|
|
2
|
Product Model
|
ZL-6090
|
|
3
|
Cutting Size
|
600*900mm (customized)
|
|
4
|
Power
|
1000W 1500W 2000W 3000W 4000W 6000W 8000W 10000W 12000W 20000W
|
|
5
|
Maximum acceleration
|
2-5g
|
|
6
|
X axis fast movement speed
|
60m/min
|
|
7
|
X axis effective movement distance
|
600mm
|
|
8
|
X axis Positioning accuracy
|
±0.01mm
|
|
9
|
X axis repeatability
|
±0.004mm
|
|
10
|
Y axis fast movement speed
|
60m/min
|
|
11
|
Y axis effective movement distance
|
900mm
|
|
12
|
Y axis Positioning accuracy
|
±0.01mm
|
|
13
|
Y axis repeatability
|
±0.004mm
|
|
14
|
Z axis effective movement distance
|
100mm
|
|
15
|
Laser head
|
Raytools
|
|
16
|
High precision guide rail
|
Taiwan Hiwin
|
|
17
|
Working table
|
Marble
|
|
18
|
Linear Motor
|
XL
|
1.The beam body adopts lightweight design and has good acceleration performance;
2.Precision machining by CNC gantry milling machine ensures accurate movement
3.High precision can be maintained for a long time, easy assembly and interchangeability.
4.The beam is made of extruded aluminum profiles, which have good acceleration performance and effectively prevent structural deformation.
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2. What's your warranty?
Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.
