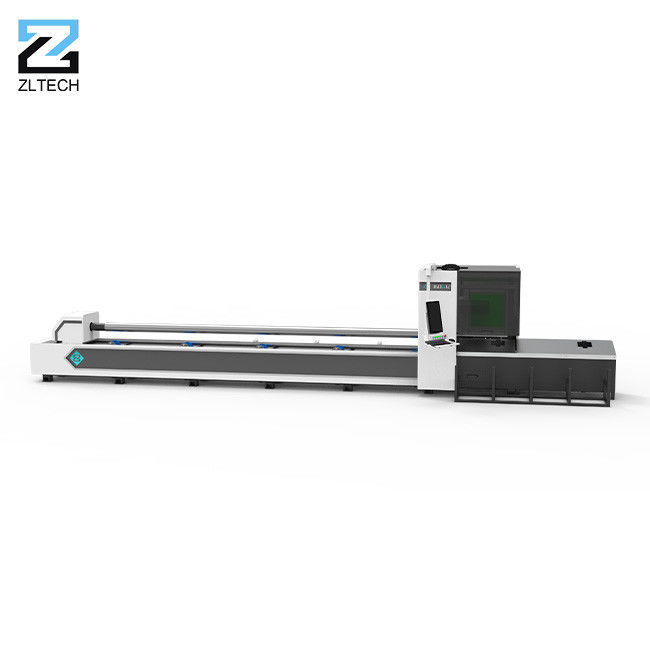

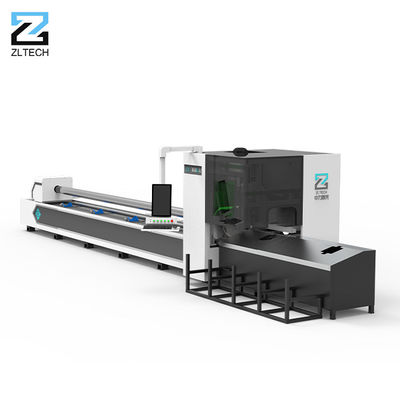

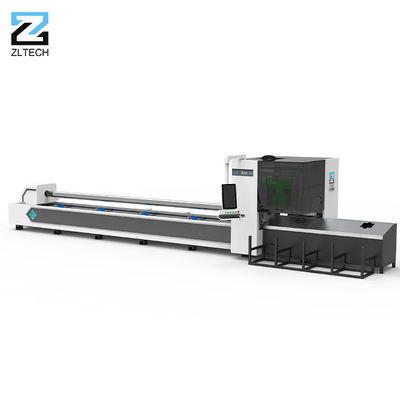

Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm

Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm

Large Image :  Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-360G12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm

Description
Application: Metal Plate Laser Cutting Cutting Area: 3000mm/6000mm/9000mm/12000mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX Warranty: 3 Years
Highlight:

Automatic Loading Fiber Laser Tube Cutter

,

Fiber Laser Tube Cutter 3000mm

,

6000mm laser metal pipe cutter machine

Tube Cutter Machine Price High Power Multi-Chuck Laser Cutting Machine Automatic Loading Unloading Tube Laser Cutter

Tube Cutting Machine Cutting Machine Automatic Loading Tube Laser Cutter

(fiber laser machine/metal cut/cnc laser cutting machine)

Specification
Model
 ZL-360G12
Laser Output Power
40000W/20000W/10000W/8000W/6000w/4000w/3000w/2000w/1500w
Chuck Quantity
4
Shortest Remaining Material
0
Effective Square Tube Cutting Scope
□60*60-□325*325mm
Rectangular Tube
Edge Length
60mm-360mm
Outer Circle Diameter
≤460mm
Effective Round Tube Cutting Diameter
Φ60-Φ460mm
Max. Machinable Tube Length
12000mm
Max. Chuck Rotating Speed
40r/min
X/Y-Axis Positioning Accuracy
0.06mm
X/Y-Axis Repositioning Accuracy
0.04mm
Max. Tube Weight
1800kg
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 0
1.Four chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting; The three chucks operate in coordination, after the chuck through the middle chuck internal cutting operation.
2.Wide range of pipe cutting it supports the processing of 12000mm ultra-long whole workpiece, channel steel, angle steel, I-beam and other profiles, and the maximum load-bearing capacity of a single pipe is 900KG.

Application
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 1
Widely used in the furniture industry, lighting industry, fitness equipment industry, automotive industry, home appliances manufacturing, kitchenware, etc.
--Tube length:3000mm/6000mm/9000mm/12000mm
--Diameter: φ15~φ360 mm
--Laser power: 1000W-40000W
Square tube, rectangular pipe, OB tube, D type tube, triangle tube, elliptical pipe, equal diameter and other special shaped tube
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 2
Cutting Thickness
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)
Product Quality
Stable & Strong Welded Steel Bed
The integrated processing technology of high-precision gantry machine tool, through furnace annealing and aging treatment, the stability and cutting precision of the bed are greatly improved and the service life of the bed is prolonged.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 3Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 4
Controller
We use FSCUT3000S,FSCUT5000, Weihong, etc.If you want to use another controller you needs, we support adjust configurations.
TubesT is a 3D tube nesting software for the TS series. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 5
Laser source
We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 6
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 7
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Our double-sided follow-up support device It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 8
BEUT Pneumatic Chuck
A well-known brand, the rear cassette has an air blowing function to remove dust and waste accumulation, and does not affect the performance and service life of the rear chuck.
Gear transmission Chuck
Accuracy, speed and life are better than belt transmission.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 9Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 10
Automatic Loading and Unloading Part Design
Completely servo control during feeding process,parameterized control, no manual intervention required.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 11

Water chiller
Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water chiller you can choose you needs.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 12
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 13
Servo motors and drivers
Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 14Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 15
Good Quality Gears
Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 16
Reducer
Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 17
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 18
Company Profile
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 19
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 20
ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.
Why Choose Us
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 21
High Quality Requirement from ourself
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 22
Strict Quality Control
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 23
Independent and Experienced R&D Department
In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.
Automatic Loading Fiber Laser Tube Cutter 3000mm 6000mm 24
Professional After-Sale Service
ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.
FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?
Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.

6.What is the maximum length of pipe that your machine can support?
Our machine can support maximum 3m/6m/12m length of pipe, you can choose suitable cutting length according to your requirements.

7.Do You Have Agent Or Distributor In Our Country?
There are so many end-users in your country, and we are looking for agent in your country, do you have any interest?
