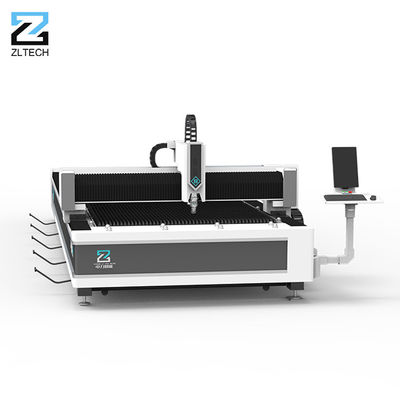

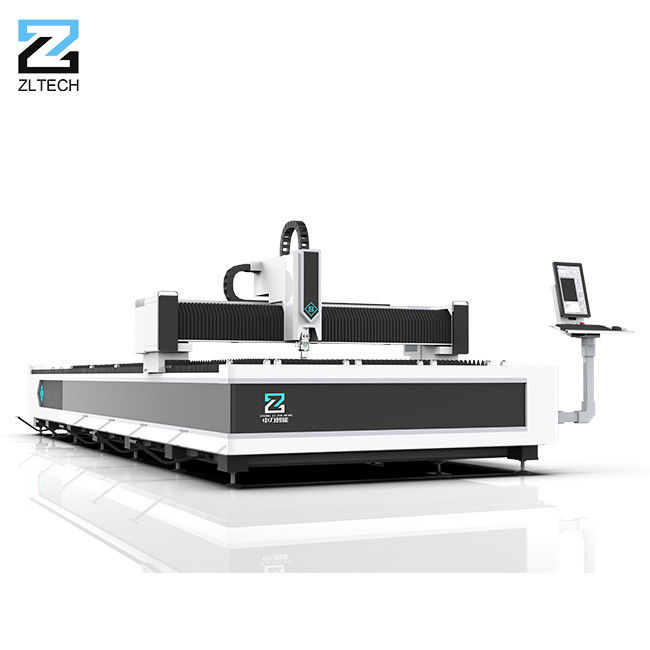

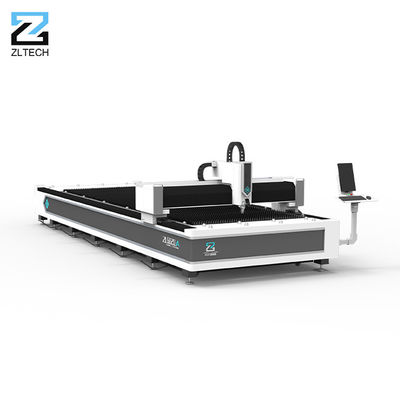

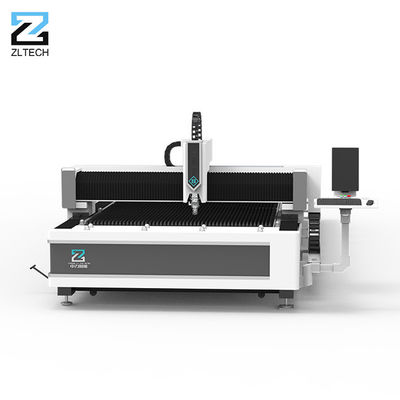

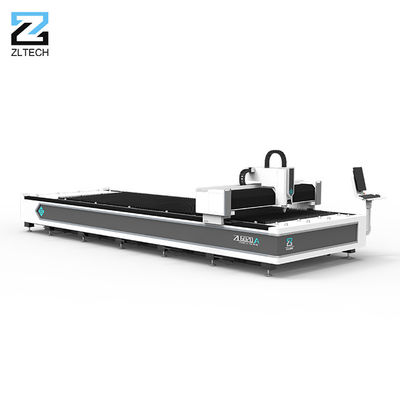

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel

Large Image :  6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel

Product Details:
Place of Origin: CHINA
Brand Name: ZLTECH
Certification: CE,FDA
Model Number: ZL-6020A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD12000-25000 per Piece
Packaging Details: Plastic protective film, export plywood box
Delivery Time: 10-30days
Payment Terms: T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability: 60pcs/month
Contact Now

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel

Description
Application: Metal Plate Laser Cutting Cutting Area: 6000*2000mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cooling Mode: WATER COOLING
Laser Source Brand: MAX; IPG, Raycus,JPT Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand: Cypcut Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage: 3 Phase,380v,50Hz Or Customized Cutting Materials: Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX Warranty: 3 Years
Highlight:

6000W fiber laser metal sheet cutting

,

1000W fiber laser metal sheet cutting

,

6000x2000mm laser cutter for metal sheets

6000*2000mm 1000W - 6000W Raycus MAX CNC MS Steel Metal Sheet Fiber Laser Cutting Machine Sheet Metal Laser Cutter
Parameter
Mode
ZL-3015A
ZL-4015A
ZL-4020A
ZL-6020A
Working Area
3000*1500mm
4000*1500mm
4000*2000mm
6000*2000mm
Repeat Repositioning Accuracy
±0.03mm
Accuracy of Positioning
±0.02mm
X,Y Max linkage Speed
200m/min
Laser Power
1000W / 1500W / 2000W/3000W/4000W/6000W/8000W/12000W
Laser Source
MAX / Raycus / IPG
Electricity requirements
380V/50Hz/60Hz/80A
Maximum acceleration
2.0G
Upgrade
Tube cutting / Exchange platform /Enclosed protection
Products Overview

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 0
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 1

In-kind shooting details

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 26000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 3

Laser Source / China MAX                                        Switzerland Raytools

MAX, as a leading developer and                                Raytools is currenly the most popular and used
manufacturer of high performance fiber laser,          cutting head brand in the market
is stable and enery-saving, which is applied                cause its high presion and cost performance.
in numerous markets.

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 4
Servo Motor / Japan Fuji
Fuji servo motor can withstand high speed and high
acceleration, which decides the high stability of laser
cutting machine.
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 56000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 6
30mm Guide Rails / Taiwan Hiwin&Rack gear / Taiwan YYC
Hiwin high positioning accuracy Guide Rails makes the whole cutting machine works in a high presion situation.
YYC high presion Rack and Gear make sure the whole cutting machine works in a high presion situation.
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 7

Control System / China CypCut

Powerful functions, user-friendly design and easy operation make it currently the largest brand of CNC laser cutting machine systems in China.

Sample Display
6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 8

Company Profile

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 9

6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 10


6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 11


6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 12


6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 13


6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 14


6000x2000mm 1000W-6000W Fiber Laser Metal Sheet Cutting MS Steel 15

FAQ
1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.

3. If I do not know how to operate the fiber laser cutter, how you can help me?
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.

4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.

5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry

6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.

7.What‘s your delivery time?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.

8.How to ensure the safety of the machine during transportation?
We have experienced and professional packaging team, according to the needs of customers to carry out special  packaging, and we use a lot of soft materials in the inside of the packaging case to ensure the safety of the machine during transportation.
