Product Details:
|
| Laser Source Brand:: | Raycus JPT MAX IPG Reci | Control System Brand: | Qilin,Relfar,Chaoqiang,Au3Tech |
|---|---|---|---|
| Laser Head Brand:: | Qilin,Relfar,Chaoqiang,Au3Tech | Cable Length:: | 8-10 Meters |
| Cooling System:: | Water Cooling | Water Chiller: | Hanli,S&A,DVT |
| Pulse Frequency:: | 50/60HZ | Laser Welding Materials:: | Steel Copper Sliver Iron Aluminum |

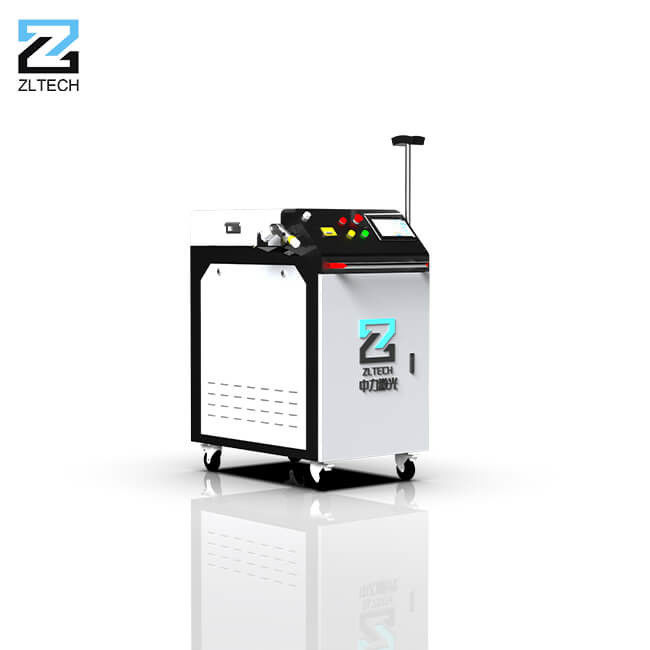

| Highlight: | 2kw hand held fiber laser welder,1.5kw hand held fiber laser welder,Portable 1000w fiber laser welding machine |
||
FEATURE:
Simple & easy to learn, flexible and convenient: The machine adopts an integrated structure. There is no high requirements for welder, after short training, they can get started using the machine.
Low machine cost and maintenance cost: Hand-held laser welding machine, no need a fine welding working-table when operate. It’s also less consumables, low running costs and maintenance costs. It’s high cost performance;
Save welder: Welding speed is fast, 5-10 times faster than traditional welding, and one machine can save at least 2 welders a year; the welded seam after welding is smooth and beautiful, reducing the subsequent polishing process, saving time and cost;
Good quality: The laser welding workpiece has no deformation, no welding scar, and the welding is firm and stable;
Safety protection: It has a contact type safety protection function to avoid accidental laser emission and ensure that laser can only be welded after contact with metal. Equipped with laser protective glasses, which need to be worn when welding to ensure safety.
|
Model
|
ZLW-1000W
|
ZLW-1500W
|
ZLW-2000W
|
|
Continuous power
|
1000W
|
1500W
|
2000W
|
|
Fiber optical length
|
≥10m, can be customized
|
||
|
Machine Dimension
|
600mm*1000mm*950mm
|
600mm*1000mm*950mm
|
600mm*1000mm*950mm
|
|
Machine Weight
|
300kg
|
300kg
|
300kg
|
|
Welding Head Weight
|
1.0kg
|
1.0kg
|
1.0kg
|
|
Working Voltage
|
220V
|
380V
|
380V
|
|
Protective gas interface
|
6mm quick plug
|
||
|
Total Power
|
3kw
|
4.5kw
|
5.5kw
|
|
Weldable materials
|
Stainless steel, galvanized sheet, aluminum alloy, brass……
|
||
|
Welding thickness
|
1.5mm tailor welding
|
2.5mm tailor welding
|
3.5mm tailor welding
|
|
Wire feeding function
|
Yes
|
Yes
|
Yes
|
|
Working temperature
|
-30℃ ～ 40℃, antifreeze is needed in low temperature environment
|
||
|
Storage temperature
|
Temperature -40℃～80℃, pay attention to empty the water tank at low temperature;
Humidity: 30%～75%RH; Keep no corrosive gas. |
||
LASER WELDING HEAD:
The brief introduction of laser welding gun.
WELDING NOZZLE:
5 pieces nozzles, different welding nozzle can be chosen to adapt various angels of welding.
Only when the copper nozzle of the welding head touches the workpiece and presses the button switch at the same time, the welding head will be welded. Avoid accidental light emission caused by mistakes.
SAMPLES:
