Mini 1390 Small Fiber Laser Cutting Machine 120m/Min 1300×900mm

Name: Mini 1390 Small Fiber Laser Cutting Machine 120m/Min 1300×900mm
Brand: Jinan Zhongli Laser Equipment Co., Ltd.
SKU: ZL-1390A
Price: 18,500.00 USD
Availability: InStock

All Products

Fiber Laser Cutting Machine
(54)

Metal Pipe Laser Cutting Machine
(8)

Sheet And Tube Laser Cutting Machine
(29)

Metal Laser Cutter
(5)

Fiber Laser Tube Cutter
(9)

Small Fiber Laser Cutting Machine
(19)

High Precision Fiber Laser Cutting Machine
(10)

Sheet Metal Laser Cutter
(19)

Laser Welding Machine
(10)

Fiber Laser Welder
(10)

Laser Cleaning Machine
(10)

Laser Rust Removal Machine
(10)

Best Products

1300mmx2500mm Small Fibre Laser Cutting Machine

1070nm Small Fibre Laser Cutter

1325 Small Fiber Laser Cutting Machine

Certification

Customer Reviews

This is Derek from UK. We bought one 3000w fiber laser cutter from ZLTECH on year 2010. Their engineer David provided us technical support and machine works very well. I will be in touch with ZLTECH next year for one bigger power laser.

—— Derek from UK

This is Seif from Israel, one of my friend recommended ZLTECH to me and I bought one enclosed fiber laser cutting machine from them.Machine runs perfectly and it helped us a lot, its cutting accuracy is much better than our old plasma cutter.

—— Seif from Israel

I'm Online Chat Now

Mini 1390 Small Fiber Laser Cutting Machine 120m/Min 1300×900mm

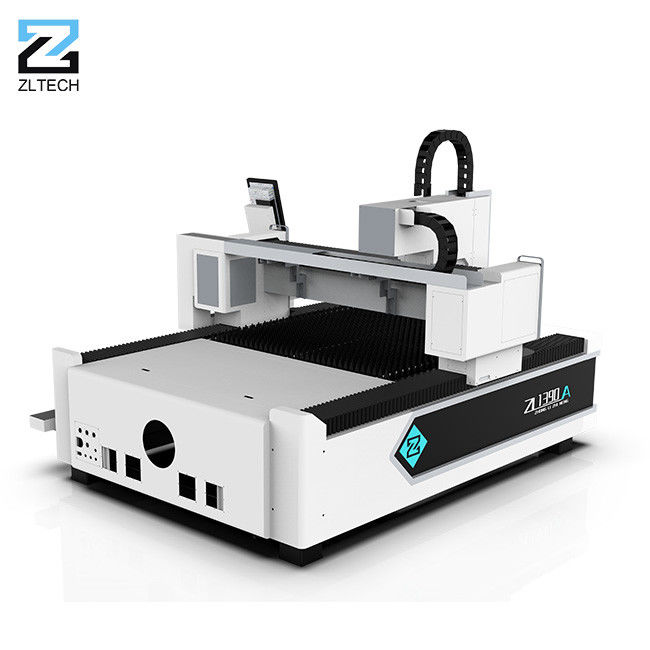

Large Image : Mini 1390 Small Fiber Laser Cutting Machine 120m/Min 1300×900mm

Product Details:

Place of Origin:	CHINA
Brand Name:	ZLTECH
Certification:	CE,FDA
Model Number:	ZL-1390A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD12000-25000 per Piece
Packaging Details:	Plastic protective film, export plywood box
Delivery Time:	10-30days
Payment Terms:	T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability:	60pcs/month

Contact Now

Mini 1390 Small Fiber Laser Cutting Machine 120m/Min 1300×900mm

Description

Application:	Metal Plate Laser Cutting	Cutting Area:	1300*900mm
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cooling Mode:	WATER COOLING
Laser Source Brand:	MAX; IPG, Raycus,JPT	Servo Motor Brand:	Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand:	Cypcut	Laser Power:	1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage:	3 Phase,380v,50Hz Or Customized	Cutting Materials:	Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Type:	Fiber Laser	Laser Head Brand:	Raytools,Au3tech, Precitec,Worthing, Empower,WSX
Warranty:	3 Years
Highlight:	Mini Small Fiber Laser Cutting Machine , Small Fiber Laser Cutting Machine 120m/Min , 1300×900mm metal fiber laser cutter

Products Overview

ZLTECH 1390 fiber laser cutting machine for metal sheet

Metal Cutting Laser Machine Laser Head Metal Laser Cutting Machine Mini 1390 China Products

Parameter

Brand	ZLTECH
Model	ZL1390A
Cutting area	1300×900mm (customized)
Fiber laser power	1000w/1500w/2000w/3000w/4000w/6000w/8000w/1000w/12000w
Laser wavelength	1,070-1,080mm
Moving speed	120m/min
Max Cutting speed	50m/min
Position accuracy	±0.03mm
Repeatability accuracy	±0.01mm
Max acceleration	1.0G

In-kind shooting details

Laser Source / China Raycus

Raycus, as a leading developer and manufacturer of high performance fiber laser,is stable and enery-saving, which is applied in numerous markets.

Cutting Head / Switzerland Raytools

Raytools is currenly the most popular and used cutting head brand in the market cause its high presion and cost performance.

Servo Motor / Japan Fuji

Fuji servo motor can withstand high speed and high acceleration, which decides the high stability of laser cutting machine.

30mm Guide Rails / Taiwan Hiwin

Hiwin high positioning accuracy Guide Rails makes the whole cutting machine works in a high presion situation.

Rack gear / Taiwan YYC

YYC high presion Rack and Gear make sure the whole cutting machine works in a high presion situation.

Control System / China CypCut

Powerful functions, user-friendly design and easy operation make it currently the largest brand of CNC laser cutting machine systems in China.

Reducer / Japan Desbore

The Desbore reduccer uses different types of gear technology. No matter what type of equipment we use, we can find the perfect fit in this high precision product.

Water Chiller / China Hanli

Hanli is a widely used Water Chiller brand in China due to its excellent quality and leading research retrength. It can keep the laser source and cuuting head in a suitable work temperature.

Independence Electrical Cabinet

All electrical components and control parts were put into the dust-proof separate control boxes, to ensure the service life of the components, also makes its easier to repair when the accessories are damaged.

Sample Display

Applicable Materials:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.

Company Profile

Warranty and Service

~3 years warranty and new parts for free will be send if any parts broken by non-human issues.~Online after-service supports solve your problems timely and easily.

FAQ

1.Are you a factory or a foreign trade company?

We have factory production machines and the price is very competitive.

We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?

Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
3. If I do not know how to operate the fiber laser cutter, how you can help me?

First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?

Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.

We have a shipping company that has cooperated for many years, which can help you save costs.

5.How about the price?Can you make it cheaper?

The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry

6.How about the payment?

T/T,30% deposit, and balance is after the production is finished.

Also we accept the PAYPAL, west union,etc.
7.What‘s your delivery time?

For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.

8 Do I need the gas for my fiber laser cutting machine?

Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
