1kw 2kw 3kw Fiber Laser Cutting Machine With Exchange Table And Large Enclosure

1300*1300mm Fiber Laser Cutting Machine Can Be Equipped With Exchange Table And Large Enclosure 1000w 2000w 3000w

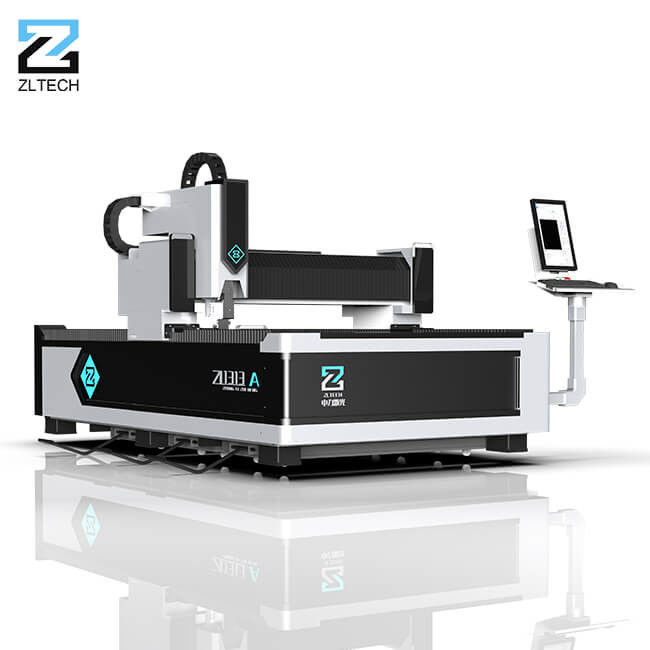

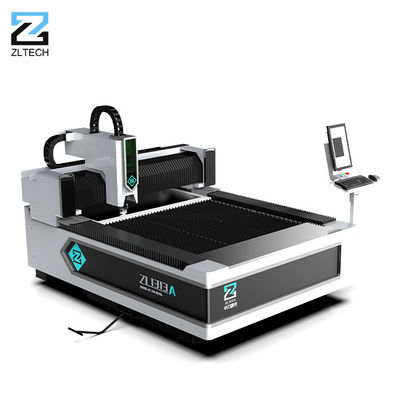

1313 Fiber Laser Cutting Machine for Sheet Metal

1. Luminescent medium
Fiber laser generates laser light through diode pumping, and uses flexible fiber optic cable to transmit the laser beam
2. Structure
At the same power, fiber lasers are more compact than CO2 lasers
3. Electro-optical conversion efficiency
The conversion efficiency of fiber laser is about 30%
4. Laser wavelength
The wavelength of fiber laser is 1.06μm, the cutting speed is fast and the processing efficiency is higher
Therefore, in the sheet metal processing industry, people generally choose fiber laser cutting machines


Spec:

Product Quality:



Strong & Stable Welded Bed

The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile
strength, the working performance is stable. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.



Aviation Stretched Aluminum Gantry

The machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with
4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.



Dust-proof Electrical Cabinet

We put all electrical components and laser source into the independent control box, it is dustproof which can guarantee the life span of the components.
Also, we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation









Servo Motor And Drivers

High speed, high precision, high reliability, high power. Gantry double drive mechanism has high damping coefficient, good rigidity, could withstand high speed and high acceleration.







YYC Rack Gear

High transmission efficiency;
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance

FAQ:

1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
