Small Fiber Laser Sheet Cutting Machine

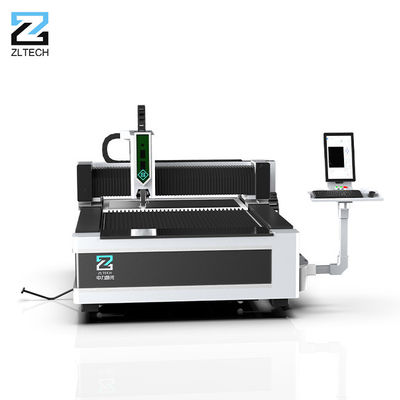

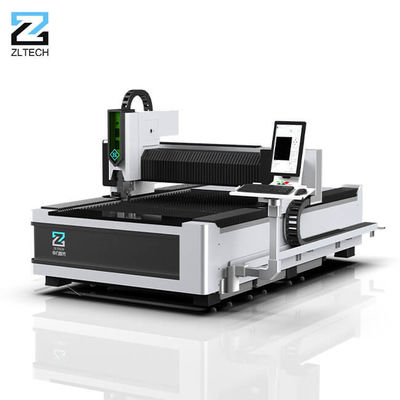

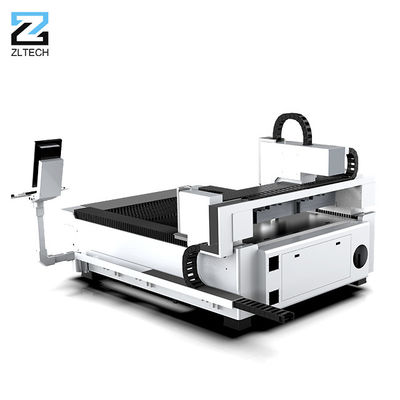

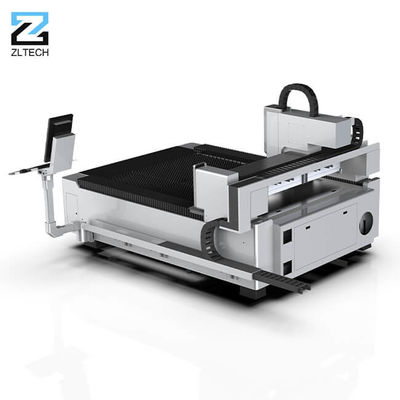

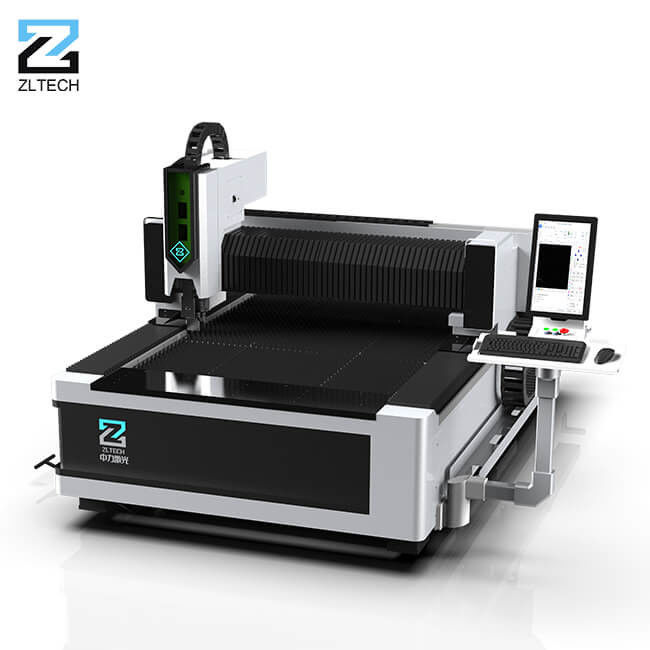

Large Image : Small Fiber Laser Sheet Cutting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZLTECH
Certification:	CE,FDA
Model Number:	ZL-1313A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD12000-25000 per Piece
Packaging Details:	Plastic protective film, export plywood box
Delivery Time:	10-30days
Payment Terms:	T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability:	60pcs/month

Contact Now

Small Fiber Laser Sheet Cutting Machine

Description

Application:	Metal Plate Laser Cutting	Cutting Area:	1300*1300mm
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cooling Mode:	WATER COOLING
Laser Source Brand:	MAX; IPG, Raycus,JPT	Servo Motor Brand:	Japan Fuji, Japan Yaskawa,Panasomic, Delta
Control System Brand:	Cypcut	Laser Power:	1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
Voltage:	3 Phase,380v,50Hz Or Customized	Cutting Materials:	Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS
Laser Head Brand:	Raytools,Au3tech, Precitec,Worthing, Empower,WSX	Warranty:	3 Years
Highlight:	Small fiber laser sheet cutting machine , 2kw fiber laser sheet cutting machine , 3kw fiber laser cutting metal sheet

ZLTECH 1313 fiber laser cutting machine for metal

Small Cnc Sheet Laser Cutter 1313 Working Area 2kw 3kw Fiber Laser Cutting Machines For Metal

Parameter

Brand	ZLTECH
Model	ZL1313A
Cutting area	1300*1300mm (customized)
Fiber laser power	1000w/1500w/2000w/3000w/4000w/6000w/8000w/12000w/20000w
Laser wavelength	1,070-1,080mm
Moving speed	120m/min
Max Cutting speed	50m/min
Position accuracy	±0.03mm
Repeatability accuracy	±0.01mm
Max acceleration	1.0G

Products Overview

Details

Laser Source / China Raycus Cutting Head / Switzerland Raytools

Raycus, as a leading developer and manufacturer Raytools is currenly the most popular and used cutting head

of high performance fiber laser,is stable and brand in the market cause its high presion and cost performance.

enery-saving, which is applied in numerous markets.

Servo Motor / Japan Fuji 30mm Guide Rails / Taiwan Hiwin

Fuji servo motor can withstand high speed and Hiwin high positioning accuracy Guide Rails makes the

high acceleration, which decides the high stability whole cutting machine works in a high presion situation.

of laser cutting machine.

Rack gear / Taiwan YYC Control System / China CypCut

YYC high presion Rack and Gear make sure the Powerful functions, user-friendly design and easy operation make it

whole cutting machine works in a high presion situation. currently the largest brand of CNC laser cutting machine systems in China.

Reducer / Japan Desbore Water Chiller / China Hanli

The Desbore reduccer uses different types of gear Hanli is a widely used Water Chiller brand in China due

technology. No matter what type of equipment we use, to its excellent quality and leading research retrength.

we can find the perfect fit in this high precision product. It can keep the laser source and cuuting head in a suitable work temperature.

Sample Display

Applicable Materials:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.

Company Profile

Warranty and Service

~3 years warranty and new parts for free will be send if any parts broken by non-human issues.

~Online after-service supports solve your problems timely and easily.

FAQ

1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.

3. If I do not know how to operate the fiber laser cutter, how you can help me?
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.

4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.

5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry

6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.

7.What‘s your delivery time?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.

8 Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
