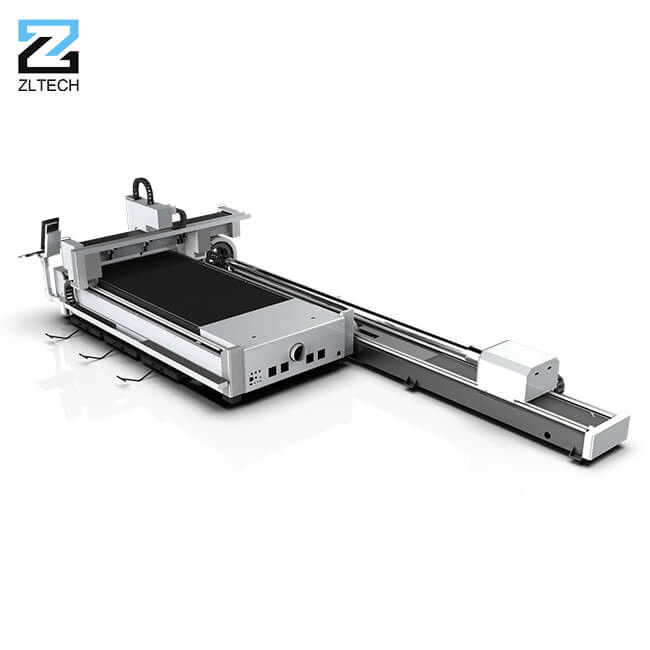

ZLTECH 3015AC-1000w 2000w 3000w Sheet Metal Tube High Speed Fiber Laser Cutting Machine

Main feature:

(1) Fiber lasers have high electrical-to-optical conversion efficiency, with a conversion efficiency of more than 30%. Low-power fiber lasers do not need to be equipped with chillers. Air cooling can greatly save power consumption during work, save operating costs, and achieve the highest production efficiency;
(2) The laser only needs electric energy during operation, and does not require additional gas to generate laser light, and has the lowest operation and maintenance costs;
(3) The fiber laser adopts semiconductor modularization and redundant design. There is no optical lens in the resonant cavity, and no start-up time is required. It has the advantages of no adjustment, no maintenance, and high stability, which reduces the cost of accessories and maintenance time. This is Unmatched by traditional lasers;
(4) The output wavelength of the fiber laser is 1.064 microns, which is 1/10 of the wavelength of CO2. The output beam quality is good and the power density is high, which is very conducive to the absorption of metal materials. It has excellent cutting and welding capabilities, so that the processing lowest cost;
(5) The optical fiber transmission of the whole machine does not require complicated light guide systems such as mirrors, the optical path is simple, the structure is stable, and the external optical path is maintenance-free;





Strong & Stable Welded Bed

The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile
strength, the working performance is stable.With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.



Aviation Stretched Aluminum Gantry

Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with
4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.







Laser Source

100,000 hours life span;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;





Dust-proof Electrical Cabinet

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the
high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and
high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly
eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation









Servo Motor And Drivers

High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.







YYC Rack Gear

High transmission efficiency;
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance







Water Chiller

1. With environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
